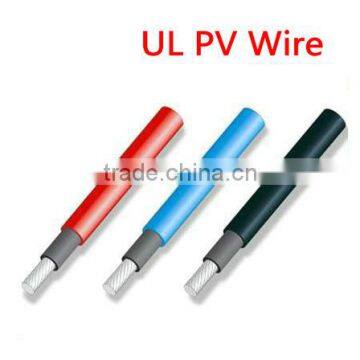

UL PV CABLE 14AWG red cable
- 200000 Meter / Meters per Month
- ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | followray | |
| Model Number | UL PV CABLE 14AWG red | Type | Clock |
Product Description
1.Application
FOLLOWRAY SOLAR CABLE Used for interconnection wiring of grounded and ungrounded photovoltaic power systems and other applicable parts of the National Electrical Code (NEC), NFPA 70.
2.Cable design
1.Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
2.Insulation:Flame retardant PE,electron beam cross-linked
Colours: black
3.Outer jacket: Flame retardant PE,electron beam cross-linked
resistance against water , UV resistant
3.Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C(min.25 years)
4.Electrical characteristics
Nominal AC voltage 600V
AC-test-voltage 3.0KV(14AWG~10AWG)
5.Marking
(UL) E326179 PV WIRE 14~6AWG 90°C WET OR DRY 600V SUN RES -40°C NINGBO FOLLOWRAY SOLARTECH CO . , LTD.
6.Industry Standards
UL 4703 , File No. E326179
