Home > Products > UL 4703 CERTIFIED PV WIRE > UL PV CABLE 14AWG red UL solar cable XLPE Insulated

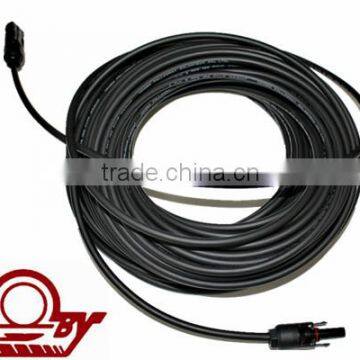

UL PV CABLE 14AWG red UL solar cable XLPE Insulated
- 200000 Meter / Meters per Month
- ningbo
- T/T
You May Like
-
UL PV CABLE 2/0AWG red solar wire
-
UL PV CABLE 4/0AWG red pv wire
-
UL PV CABLE 4/0AWG black solar pv cable
-
PHOTOVOLTAIC WIRE 600V single conductor and Double Insulated power cable meeting UL 4703requirements
-
Service Entrance Cable 600V single conductor power cable USE-2 meeting UL 854 requirements
-
UL USE-2 flat CABLE 8AWG blackpv wire for solar energy system
Product Details
| Place of Origin | Zhejiang, China | Brand Name | followray | |
| Model Number | UL PV CABLE 6AWG red | Type | Other, solar panel |
Product Description
UL PV CABLE 14AWG red UL solar cable
1.Application
FOLLOWRAY SOLAR CABLE Used for interconnection wiring of grounded and ungrounded photovoltaic power systems and other applicable parts of the National Electrical Code (NEC), NFPA 70.
2.Cable design
1.Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
2.Insulation:Flame retardant PE,electron beam cross-linked
Colours: black
3.Outer jacket: Flame retardant PE,electron beam cross-linked
resistance against water , UV resistant
3.Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C(min.25 years)
4.Electrical characteristics
Nominal AC voltage 600V
AC-test-voltage 3.0KV(14AWG~10AWG)
5.Marking
(UL) E326179 PV WIRE 14~6AWG 90°C WET OR DRY 600V SUN RES -40°C NINGBO FOLLOWRAY SOLARTECH CO . , LTD.
6.Industry Standards
UL 4703 , File No. E326179
We are manufacturer of special cables located in Ningbo city .Zhejiang province ,China .We have researching and developing department .sales department ,after-sales department and etc . Our main products is solar cabls now ,and we are also developing new products such as car battery line .Our cables and wires are meet with the UL,TUV,EN Standard for any application .
With the motto of "advance technology ,high quality ,best service and satisfy ustomer'.We have specialized technology and management team and skilled operators .Advanced machines and testing equipments are a must in the fast paced interconnect industry where the wire us one of the most essential parts .And on the basis of local excellent resource ,we can service for customer with competitive price and creates value for the customer to assure the continuous development of the dealers' long term benefit.
