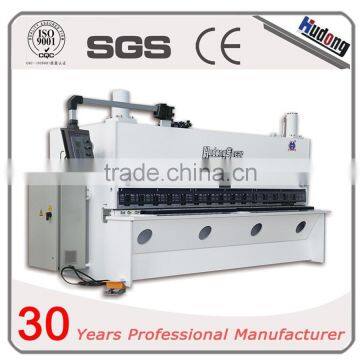

6mm x 3200mm CNC hydraulic variable rake guillotine shear
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
QC11Y Hydraulic CNC Guillotine Shearing Machine
-
Hydraulic upper roller universal plate rolling machine
-
TXW12-16*2500 hydraulic four-roller plate rolling machine
-
hydraulic 4-roller plate rolling machine
-
W12-25X3200 CNC 4 roller plate rolling machine
-
hydraulic 3-roller rolling machine with full hydraulic 3 roll metal plate bending machine
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | Hudong | Model Number | 6x3200 | |
| Voltage | 380V | Rated Power | 7.5kw | |
| Dimension(L*W*H) | 3800x1700x2200 | Weight | 6500kg | |
| Certification | ISO9001 | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction
1.The frame is steel welded structure, have sufficient strength and rigidity, eliminate internal stress and high frequency vibration, to ensure the overall accuracy of the fuselage. Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).
2.Our Shear blades use 6CrW2Si material, Hardness 55-62HRC, heat treatment, annealing,high quality materials ,four cutting edges can be usable,can cut stainless steel; if use 9CrSi material,blade cannot cut stainless steel.
3. squaring arm with inch or mm scale.
4. blade clearance(gap) adjusted by button , (Variable rake angle)shearing angle adjusted by button.
5. backgauge with ball screw and linear guides.
6. Safety key to start machine, machine install emergency button.
7.E200, DAC310 ,DAC360 CNC controller with servo motor.
| No. | Name | Value | Unit |
| 1 | Max shearing thickness | 6 | mm |
| 2 | Max shearing length | 3200 | mm |
| 3 | Material strength | 450 | N/mm2 |
| 4 | shearing angle | 0.5-2° | |
| 5 | Throat depth | 100 | mm |
| 6 | Backgauge(x axis) travel distance | 800 | mm |
| 7 | Stroke times | 12 | times/min |
| 8 | The distance between two side plates | 3370 | mm |
| 9 | Blade length | 3300 | mm |
| 10 | Worktable height | 800 | mm |
| 11 | Main motor | 7.5 | kw |
| 12 | Dimension | 3800x1700x2200 | mm |
| 13 | Weight | 6500 | kg |
1. We can send engineers to your factory for your installation ,debugging and training.
2. we can help customer slove problem in the network.
3. welcome to visit our factory, we will pick up.
pls contact Mr Yang, hope to service to you
| website | |
| Skype | youth.yang88 |
| 15156701571 |
Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.
