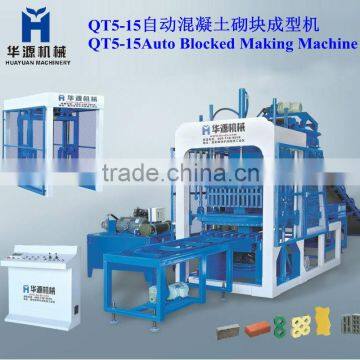

QT5-15 hollow/solid/interlock/pavers blocks making machine price paving block

Specifications

    QT5-15 hollow/solid/interlock/pavers blocks making machine price paving block

Solid  block making machine price in india  QT5-15
Cycle Times	15-20s
Total Power	37.4(kw)
Motor Frequency	50Hz
Pallet Size	880*680*20mm
Rated Pressure	31.5 (mpa)
Vibration Type	Hydraulic Vibration
Vibtation Force	68(kn)
Gross Weight	6200kg
Machine Size	9450×3300×2700mm
Stacking Machine	2.25 (kw)

Main technical parameters of accessories machine

Batching plant PL800 with two bins
CBM of Weighing Bin	0.8 m3
CBM of Aggregate	2*2m3
Productivity	48m3/h
Maximum weighing	1,500kg
Quantity of Aggregates	3
Loading Height	2,300
Weighing System	Electronic Weighing System
Power	6.6kw
Total Weight	2,350kg
Machine Size(L*W*H)	5470*1820*2810 mm

Specification of Concrete mixer JS500
Type	JS500
Capacity of charging	800
Capacity of discharge	500
Productivity(m3/h)	≥25
Maximum diameter of / Cobble	80
Bone material (mm) /Crushed stones	60
Mixing fan / Turning speed(r/min)	35
Quantity	2*7
Mixing engine / Type	Y180M-4
Power(kw)	18.5
Mixing engine /Type	YEZ132S-4-B5
Power(kw)	5.5
Pump / Type	50DWB20-8A
Power(kw)	0.75
Hosting speed of material holder	18
Outside size(mm) / Transport state	3050*2300*2680mm
Working state	4461*3050*5225mm
Weight (kg)	4000

 2.Main Brick size and capacity of  QT5-15 concrete block making machine price in india

 3 .Brief introduction of QT5-15 solid block making machine price

1)It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.

2)Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.

3)The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.

raw material
