2013 the Best Price QT6-15 Automatic Manual Hollow Block Making Machine,concrete Block Factory for Sale
- Xiamen China
- T/T
You May Like
-
Moving Block Machine , QT8-15 Fully-automatic Cement Brick Making Machine Industries Machines,
-
Full Automatic Cement Brick Making Machine From China Supplier
-
2013 the Best Price QT6-15 Automatic Manual Hollow Block Making Machine,concrete Block Factory for Sale, Fly Ash Brick Machine
-
2013 High Competitive QT4-15 Automatic Cement Brick Machine,fly Ash Brick Making Machine, Brick Making Machine Price
-
HY 2012 High Competitive Low Cost Brick/Block Machine QT8-15 Block Machinery
-
2013 Newly (Low Investment)QT6-15 Concrete Block Making Machine Brick Making Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 20sets/month | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | QT6-15 | |
| Voltage | 220V 380V | Power | 37.4kw | |
| Dimension(L*W*H) | 9450*3300*2700(mm) | Certification | ISO9001:2000 | |
| After-sales Service Provided | Overseas service center available |
Product Description
1.manual hollow block making machine
ncrete block factory for sale
3.fly ash brick making machine
1.Main technical parameters:
Cycle Time | 15-20(s) | Total Power | 37.4(kw) |
Vibration Type | hydraulic vibration | Motor Frequency | 50HZ |
Machine Dimension | 9450×3300×2700(mm) | Pallet Size | 850×680×20(mm) |
Vibration Force | 68KN | Gross Weight | 7500(kg) |
Rated Pressure | 31.5(mpa) | Stacking Machine Power | 2.25(kw) |
2.Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block .
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Bricks | Brick sizes | Production per Mold(pcs) | Production per Shift(8 hours) | Picture |
Perforated brick | 240x115x90mm | 15 | 21600-28800Pcs |
|
Solid brick | 240x115x51mm | 30 | 43200-57600Pcs |
|
Hollow brick | 390x190x190mm | 6 | 8640-11520Pcs |
|
Color paver | 200x100x60mm | 15 | 21600-28800Pcs |
|
3. Production Process:

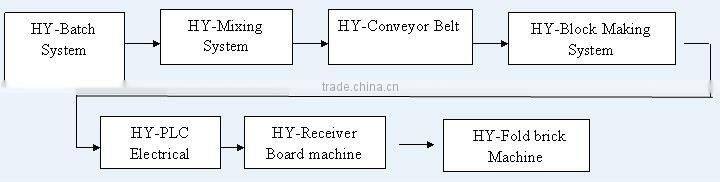

4.Production Flow Introduction:
5.Block & Brick Sample:

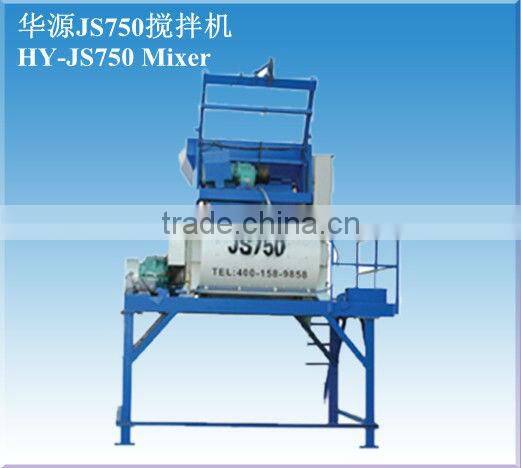

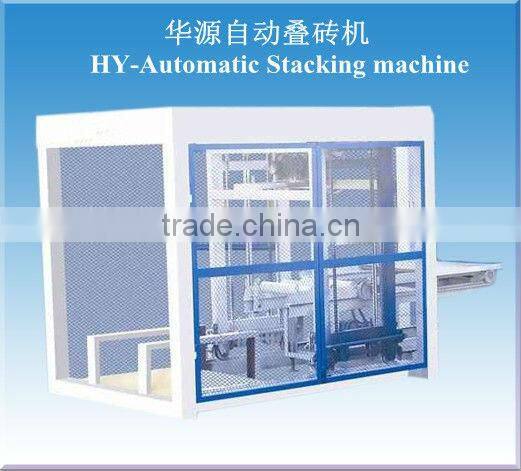

6. Product Show:

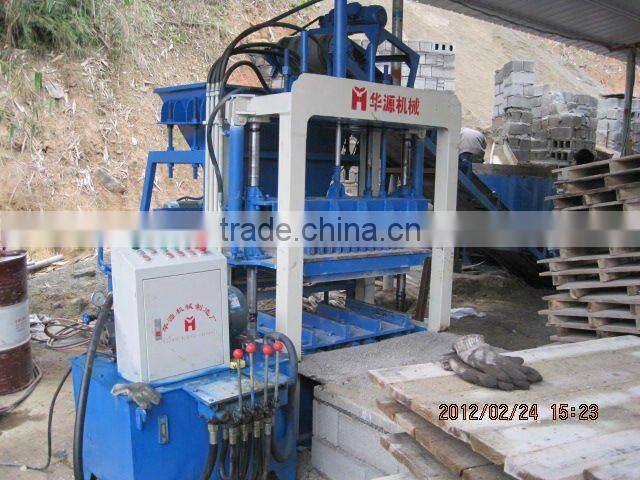

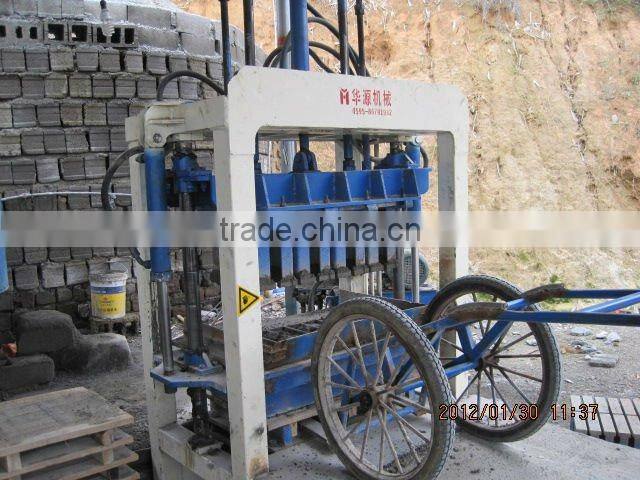

7. Customer Production Field:
