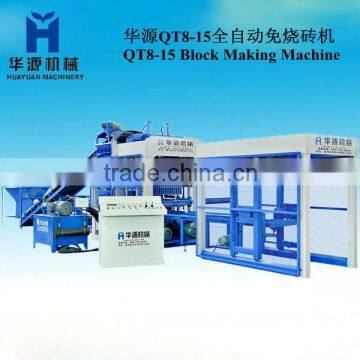

HY-QT8-15 full- automatic concrete block making machine or clay brick machine

FOB Price

USD $3,000 - $3,500 / Set

3 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hollow Block Making Machine
Brick Raw Material	Concrete	Processing	Brick Molding Machine
Method	Hydraulic Pressure	Automatic	Yes
Capacity	57,600-76,800pcs/shift	Place of Origin	Fujian, China
Brand Name	HYM	Model Number	HY8-15
Voltage	220v 380v	Power	38.1KW
Dimension(LWH)	980036002800mm	Certification	ISO9001:2000
After-sales Service Provided	Overseas service center available

1.clay brick machine
2. concrete block making machine
3.automatic clay bricks making machine
4.clay brick making machine

1,Main technical parameters:

Cycle time: 15-20(s)	Vibration Type: hydraulic vibration
Total Power: 38.1(kw)	Vibration Force: 95(KN)
Vibration Frequency: 3800-4500(times/sub)	Gross Weight: 10500(kg)
Pallet size : 900×840×25mm	Machine Size: 980036002800mm
Rated Pressure: 31.5(mpa)
Block Specification :	Production per shift (8 hours)
390×190×190mm 8(pcs)	11,520-15,360(pcs)
240×115×53mm 40(pcs)	57,600-76,800(pcs)
240×115×90mm 18(pcs)	30,240-40,320(pcs)
200×100×60mm 28(pcs)	40,320-53,760(pcs)

2,Main Technical Specifications:

A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;

B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;

C. Forming production faster and with higher compactedness ;

D. High-heat treatment special technology (to make the mould more durable and more firm) .

Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.

Multiple uses. It can produce all types of standard building blocks by changing mould.

A, Multi-holes block and hollow block ;

B, Ceramsite heat preservation block;

C, Composite heat preservation concrete block.

3.Clay Brick Sizes and capacity:

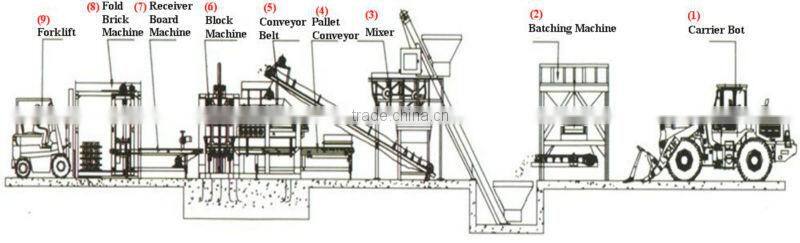

4. Production Flow Introduction

5.Products display:

6.Block and brick Sample:

7.World Customers & Contact :
