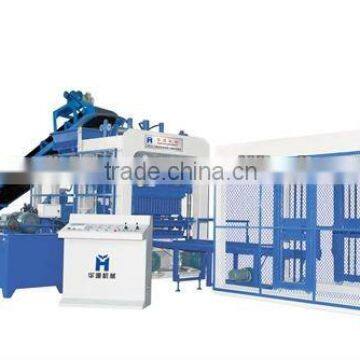

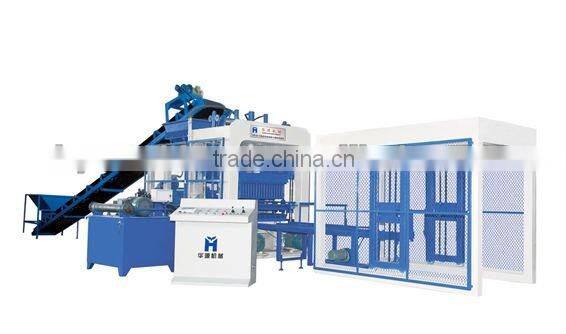

QT10-15 Forming Machine Concrete Block Making Machine

FOB Price

US$ 65,000 - 72,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hollow Block Making Machine
Brick Raw Material	Concrete	Processing	Brick Production Line
Method	Hydraulic Pressure	Automatic	Yes
Capacity	20 sets per Month	Place of Origin	Fujian, China
Brand Name	HYM	Model Number	HY10-15 full-automatic concrete block making machine
Voltage	380V	Power	45.1KW
Dimension(LWH)	1150040502800	Certification	ISO9001:2000
After-sales Service Provided	Engineers available to service machinery overseas

1. concrete block making machine

2. hollow block making machine

3.cement block making machine

1,Main technical parameters

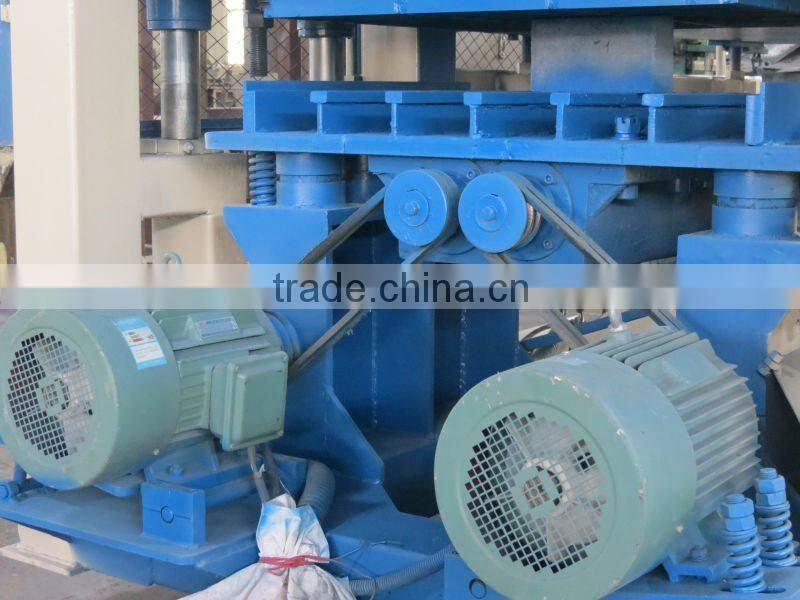

Cycle time: 15-20(s)	Vibration Type: hydraulic or moto
Total Power: 45.1kw)	Vibration Force: 105(KN)
Vibration Frequency: 3800-4500(times/sub)	Gross Weight: 12800(kg)
Pallet size : 1100×880×25mm	Machine Size:11500×4050×2800(mm)
Rated Pressure: 31.5(mpa)
Block Specification :	Production per shift (8 hours)
390×190×190mm 10(pcs)	14,400-19,200(pcs)
240×115×53mm 52pcs)	73,440-97,920(pcs)
240×115×90mm 24(pcs)	34,560-46,080(pcs)
200×100×60mm 36pcs)	about 51,640(pcs)

2,Main Technical Specifications:

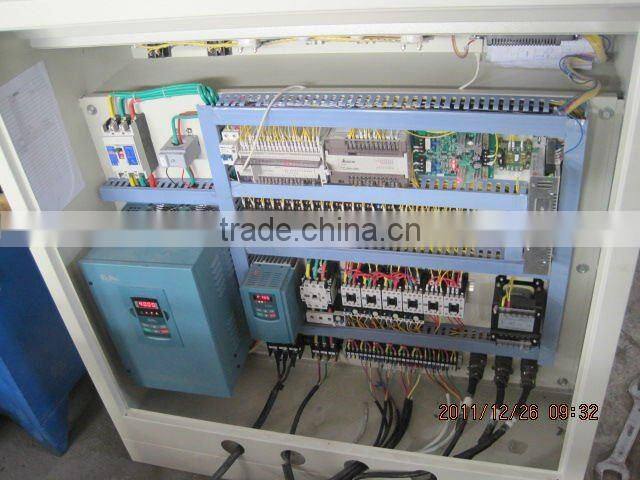

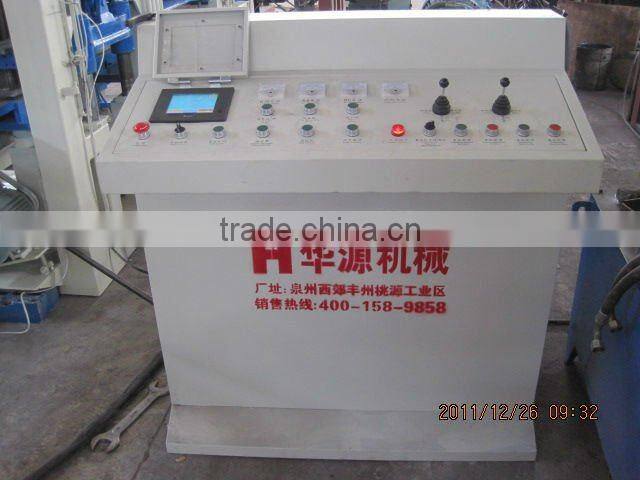

A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;

B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;

C. Forming production faster and with higher compactedness ;

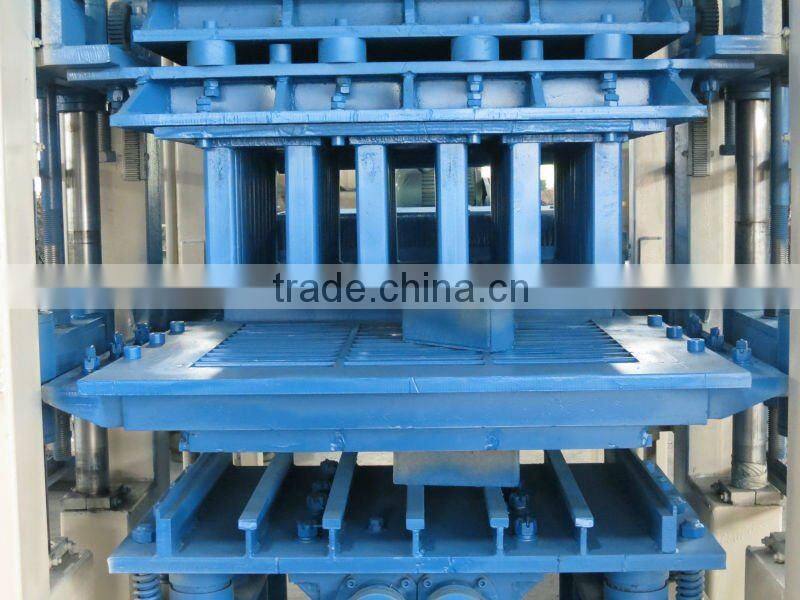

D. High-heat treatment special technology (to make the mould more durable and more firm) .

Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.

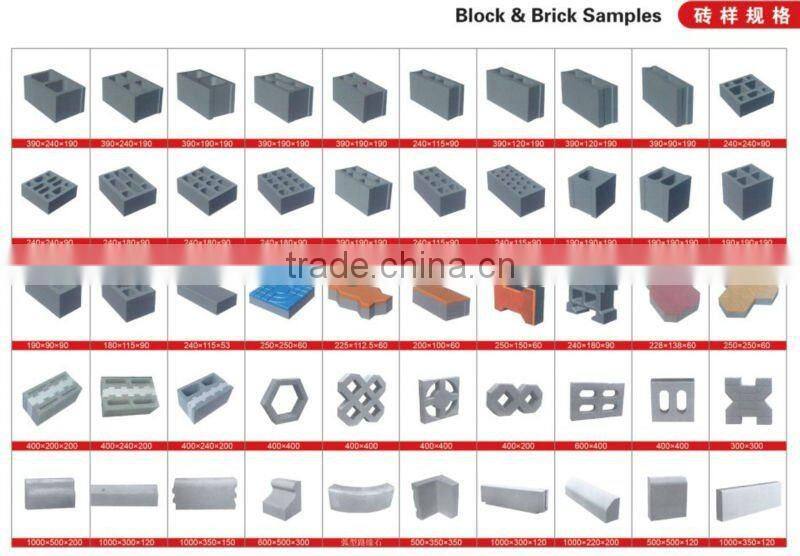

Multiple uses. It can produce all types of standard building blocks by changing mould.

A, Multi-holes block and hollow block ;

B, Ceramsite heat preservation block;

C, Composite heat preservation concrete block.
