HY6-15 Small Scale Industries Block Making Machine Used Block Making Machine
- Xiamen China
- T/T
You May Like
-
Full Antomatic Block Making Machinery for HY10-15 Ice Block Making Machine
-
Low Cost Hollow Block Making Machine Price of HY-QT8-15, Used Concrete Block Making Machine
-
The Most Popular Style in 2013 of Block Making Machine, Small Block Making Machine
-
2013 High Competitive QT6-15 Automatic Manual Hollow Block Making Machine,fly Ash Brick Making Machine,cement Block Machine
-
2012HOT SALE QT8-15 Fully-automatic Cement Brick Making Machine Industries Machines, Hollow Block Making Machine Price
-
2014 New Products QT8-15 Automatic Cement Brick Making Machine From Famous China Supplier
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 43,200-57,600pc/shift | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | HY6-15 | |
| Power | 31.4kw | Dimension(L*W*H) | 9450*3300*2700mm | |
| Certification | Iso9001:2000 | After-sales Service Provided | Overseas service center available |
Product Description
1.used block making machine
2.manual block making machine price
3.foam concrete block making machine
4.block making machine
1.Main technical parameters:
1)Exciting Force: 100KN
2)Vibration Frequency: 0-60HZ
3)Total Power: 62.88KW
4)Molding Method: Automatic charging, vibrating and pressing
5)Control Mode: Full automatic PLC control
6)Pallet Size: 1350x900x30mm (bamboo pallet)
7)Molding Cycle: 15-20S (depend on material)
8)Brick No./mold:
390 x 190 x 190mm hollow block 12pcs/mold
240 x 115 x 90mm small hollow block 30pcs/mold
240 x 115 x 53mm solid brick 70pcs/mold
200 x 100 x 60mm color paver 48pcs/mold
9)Frame Dimensions: 9500×2600×3020mm
10)Net Weight: 13.5T
11) Annual capacity: 300 days double shifts, hollow block 175, 000m3, paving stone 829,000m2

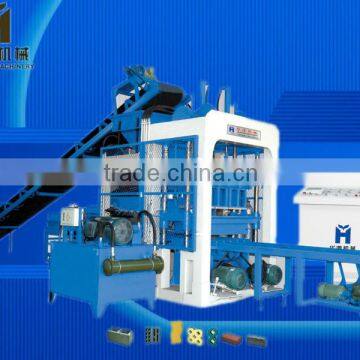

2.HT-QT SERIESAUTOMATIC BLOCK MAKING MACHINE
1.HT_QT Series automatic block making machineelectric control system consists of imported colour touch screen and programmed PLCwith data input and output device, including safety logical control and trouble shooting system.
2. Hydraulic system consists of imported components and seals with high dynamic performance proportional valves. The actions of key cylinders can be operated through the regulator of flow and pressure according to different working conditions.
3. Mainframe is made of high intensity cast and steel with special welding technique andhas good rigidity, wear resistance and long life.
4. Four guiding columns ensure the accurate action of pressing ram and mould.
5. Vibrating table with press makes blocks. To-and-fro guiding feeder feeds the materials.
6. Producing every sort of blocks such as hollow block, curbstone, grass block, slope block, etc.
7. The colour paving blocks made by means of secondly materials system.
NO | TECHNICAL DATA | HT-QT6-15 |
1 | Vibration Frequency (r/min) | 3000-4500 |
2 | Cycle Time (sec) | 15-20 |
3 | Pallet Size (mm) | 850x680x25 |
4 | Total Power (KW) | 32.25 |
5 | Dimension (mm) | 6800x1900x2900 |
6 | Weight (kg) | 10,000 |
7 | Daily(8hrs) Capacity for 390x190x190 | 8,640pcs |
Daily(8hrs) Capacity for 240x115x90 | 28,800pcs | |
Daily(8hrs) Capacity for 240x115x53 | 57,600pcs |

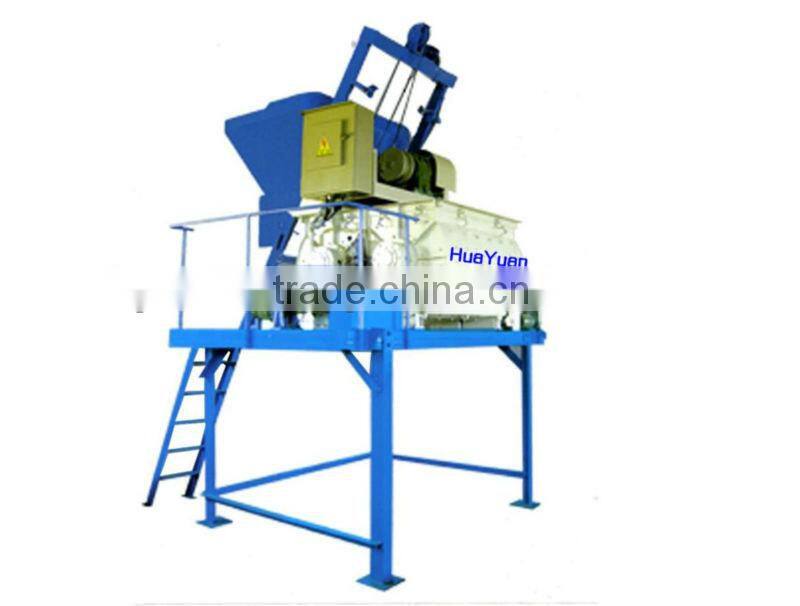

3.HY-JS SERIES MIXER :
HT-JS SERIES MIXER
NO | TECHNICAL DATA | HT-JS 500 |
1 | Feeding Capacity (L) | 800 |
2 | Exceeding Capacity (L) | 500 |
3 | Productivity (m/h) | ≥25 |
4 | Max Diameter of Material (mm) | 80/60 |
5 | Mixing blade Qty | 30.5 |
Mixing blade Rev | 2 x 8 | |
6 | Speed of Hopper (m/min) | 18 |
7 | Total Power (KW) | 24.75 |
9 | Unloading Height (mm) | 1500 |
10 | Dimension (mm) | 3030x2300x2800 |
11 | Weight (kg) | 4000 |

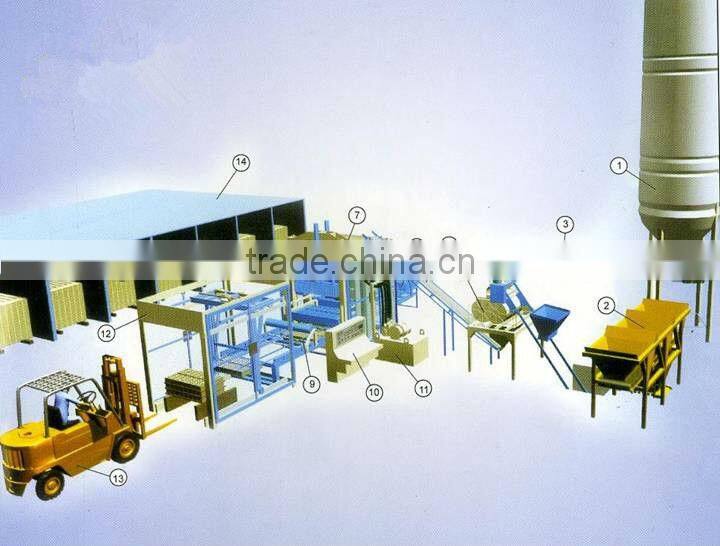

4.BLOCK MAKING PRODUCTION LINE:
01. Cement Silo 08. Pallets Feeder
02. Batching Machine 09. Block Conveyor
03. Screw Conveyor 10. PLC Control Unit
04. Cement Scale 11. Hydraulic Unit
05. Mixer 12. Automatic Stacker
06. Belt Conveyor 13. Forklift
07. Block Making Machine 14. Curing Room
5.Sample of blocks:
THANK YOU VERY MUCH FOR YOUR ATTENTION TO HUAYUAN MACHINERY!
PLEASE FEEL FREE TO CONTACT US AS FOLLOWS IF THERE IS ANYTHING WE CAN DO FOR YOU!
