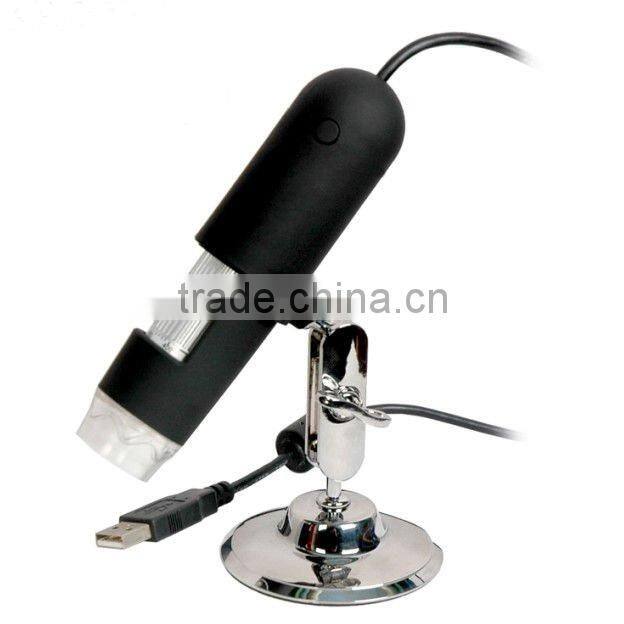

Mini USB Portable Digital Microscope 200X /400X,USB Mini Microscope

USB Digital Microscope 2.0

Technical Specifications  :
Image sensor :    2 Mega Pixels (interpolated to 5M)
Still capture resolution :
                                2560x2048 (5M), 2000x1600, 1600x1280 (2M),
                               1280x1024, 1024x960, 1024x768, 800x600,
                                640x480, 352x288, 320x240, 160x120
Video capture resolution:
                                2560x2048 (5M), 2000x1600, 1600x1280 (2M),
                                1280x1024, 1024x960, 1024x768, 800x600,
                                 640x480, 352x288, 320x240, 160x120
Focus Range :   Manual focus from 10mm to 500mm
Frame Rate:       Max 30f/s under 600 Lus Brightness
Magnification Ratio :   20x to 200x
Video format :     AVI
Photo format :    JPEG or BMP
Light source :     8 LED (adjustable by control wheel)
PC interface:       USB2.0
Power source:     5V DC from USB port
Operation system:     Windows2000/XP/Vista/Win7/ Mac
OSD language English, German, Spanish, Korean, French, Russian
Bundle software MicroCapture with measurement & calibration function
Size:              110mm (L) x 33mm (R)

Install the software:
Connecting the Microscope to Computer!! The microscope must be
connected to the computer before installing the software.
Insert the driver CD into CD-ROM Drive and this will automatically display the
following interface:
1. Install the driver by clicking install Microscope Driver
The Install Shield Wizard will walk you through the whole process. Click on
the “Next” button to continue.
2. Install the MicroCapture software
Click MicroCapture software and then reboot the system when asked.
3. You can also browse the User’s manual in PDF format and the CD contents
by choosing the corresponding menus.
