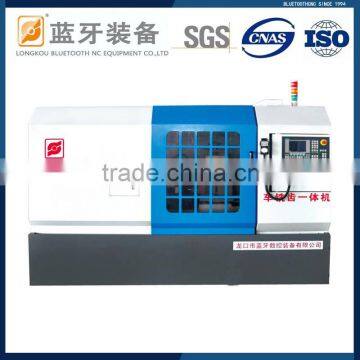

CXF-LS125 CNC turning and milling composite machine tool

FOB Price

USD $52,100 - $52,100 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port QingDao China

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	300mm	Place of Origin	Shandong, China
Brand Name	BLUETOOTHCNC	Model Number	CXF-LS125
Voltage	380V	Power(W)	11kw
Dimension(LWH)	240016001850mm	Weight	3000kg
Certification	ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CXF-LS125 CNC gear milling machine for milling spline shaft

The CXF-LS125 CNC automatic turning and milling gear machine is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.

advantage:

A) CXF-LS: Good at processing such as: spline,gears and lugs etc.

B) The CXF vertical series can process the complicated components such as:splined axis, cylindrical gears and associated shaft with high efficiency and precision.

Technical Parameters

Index	Unit	CXF-LS40	CXF-LS80	CXF-LS125	CXF-LS160
piece Dia	mm	40	80	125	160
piece length	mm	100	200	300	300
Max.subtense of turning and milling	mm	32	80	125	160
Feed rate X/Z axis	mm	100/150	150300	200/300	200/300
Rapid traverse X/Z axis	m/min	10	10	10	10
Max.cutter&max.milling head speed	r/min	2000	2000	2000	2000
Motor power of servo apindle	kw	7.5KW 380V/50HZ	9KW 380/50HZ	11KW 380V/50HZ	18KW 380V/50HZ
Positioning accuracy	mm	X/Z:0.0015	X/Z:0.0015	X/Z:0.0015	X/Z:0.0015
Repeated positioning accuracy	mm	X/Z:0.01	X/Z:0.01	X/Z:0.01	X/Z:0.01
NC system		Siemens	Siemens	Siemens	Siemens
Machine size( LWH)	mm	160014001800	240014001850	240016001850	240016001850
Machine weight	kg	2000	3000	4000	6000
Turret		4 or 6	4 or 6	6	8
Lubrication		Concentrated lubrication	Concentrated lubrication	Concentrated lubrication	Concentrated lubrication
