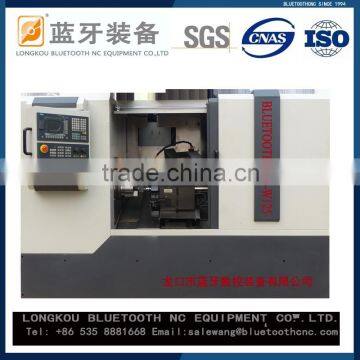

CXF-W80 CNC tuning and milling pologon lathe Machine

FOB Price

US$ 42,000 - 42,000 / Set

1 Set(Min. Order)

Port QingDao China

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	300mm	Place of Origin	Shandong, China
Brand Name	BLUETOOTHCNC	Model Number	CXF-W80
Voltage	380V	Power(W)	9kw
Dimension(LWH)	240016001850mm	Weight	3000kg
Certification	ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CXF-W60 CNC machine lathe for turning hexagon lathe

The CXF-W60 CNC automatic machine for processing hexagon lathe is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.

advantage:

A) CNC automatic machine for processing hexagon composite machine can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.One worker can operate 4-6 sets even more, save much cost for factory.

B) CNC automatic machine for processing hexagon composite machine
can turning and milling Flat,Square,Hexagons,Polygons etc.

C) CNC Turning&milling composite machine is suitable for diameter-variable processing of polyhedron. Compared with the traditional ways, the machining accuracy of CXF horizontal series have been more increased, this series of machinery is widely used in machinery manufacturing, machinery manufacturing, hardware tools, auto parts, aerospace and draining etc.

Technical Parameters

Index	Unit	CXF-W40	CXF-W50	CXF-W60	CXF-W80
piece Dia	mm	40	50	60	80
piece length	mm	100	150	200	300
Max.subtense of turning and milling	mm	32	42	532	72
Feed rate X/Z axis	mm	100/150	150/200	200/300	200/300
Rapid traverse X/Z axis	m/min	10	10	10	10
Max.cutter&max.milling head speed	r/min	2000	2000	2000	2000
Motor power of servo apindle	kw	3.7KW 380V/50HZ	5.5KW 380/50HZ	7.5KW 380V/50HZ	11KW 380V/50HZ
Positioning accuracy	mm	X/Z:0.0015	X/Z:0.0015	X/Z:0.0015	X/Z:0.0015
Repeated positioning accuracy	mm	X/Z:0.01	X/Z:0.01	X/Z:0.01	X/Z:0.01
NC system		Siemens	Siemens	Siemens	Siemens
Machine size( LWH)	mm	160014001800	160014001800	215016501900	240016001850
Machine weight	kg	1800	2000	2600	3000
Turret		4 or 6	4 or 6	6	8
Lubrication		Concentrated lubrication	Concentrated lubrication	Concentrated lubrication	Concentrated lubrication
