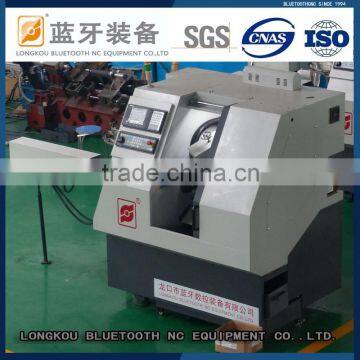

CNC lathe CXK32 Screwdriver-making Machinery
- 500 Set / Sets per Month
- Qingdao
- Credit Card
You May Like
-
CXF-W80 CNC Lathe for hexagon processing machine with tail seat
-
CXF-W80 CNC lathe hexagon milling machine
-
CXK32 Machinery industrial parts tools PH2 screwdriver bits
-
Global After-sales CXF-W40 cnc lathe with turning polygon machine
-
cheap price CXF-W50 CNC lathe machine for Polygons,hexagon
-
Factory price CXF-W40 CNC Polygon lathe machine for hardware tools
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 200mm | Place of Origin | Shandong, China | |
| Brand Name | bluetooth CNC | Model Number | CXK32 | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1400X1050X1700mm | Weight | 1000kgs | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Factory supply horizontal CNC lathe CXK32/turning and milling machine
CXK32 CNC turning and milling composite machine for bits can finish turning,milling etc much more process by once clamping on the one end of the bit.
advantage:
A) CNC turning&milling machine for bit integrate turning, milling, drilling, and other multi - pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) CNC turning&milling machine for bit have high efficient, 8-12pcs/min.
C) CNC turning&milling machine for bit have more Multi-function,can produce: Phillips,Flat,Torx, Pozidriv,Squre,Hexagonal etc.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXK32 |
| Control spindle | mm | Servo drive and motor |
| Max.chuck | mm | 32mm |
| Processing efficiency | pcs/min | 12pcs/min |
| Motor fot X/Z axis | 6N.M servo moto | |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 3000rpm |
| X/Z axis screw | ball screw | |
| X/Z axis guide rail | Linear ball guide | |
| Motor power of servo apindle | kw | 2.2KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.015mm |
| Repeated Positioning accuracy | mm | X/Z:0.01mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 1000kgs |
| Dimensions | mm | 1400X1050X1700mm |
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused by machine itself design defect , we are responsible for it .we can provided free charge breaking part, .If machine breaking caused by humane factor , user need take responsibility for it , we will provided technical support.
About our online Service
24 hours online to solve any problem . Your email will be reply within 12 hours . Your satisfy is our pursuit .sincerely hope our cooperation .
Packaging Details: packed in wooden case, or customization
Delivery Detail: 30days after confirming the advance payment
