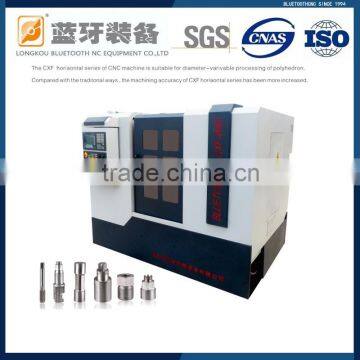

CXF-W80 CNC Lathe for hexagon processing machine with tail seat
- 500 Set / Sets per Month
- QingDao China
You May Like
-
CXF-W80 CNC lathe hexagon milling machine
-
CXK32 Machinery industrial parts tools PH2 screwdriver bits
-
Global After-sales CXF-W40 cnc lathe with turning polygon machine
-
cheap price CXF-W50 CNC lathe machine for Polygons,hexagon
-
Factory price CXF-W40 CNC Polygon lathe machine for hardware tools
-
New condition Factory price CXF-W40 CNC lathe machine for Screwdriver bit
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 300mm | Place of Origin | Shandong, China | |
| Brand Name | BLUETOOTHCNC | Model Number | CXF-W80 | |
| Voltage | 380V | Power(W) | 9kw | |
| Dimension(L*W*H) | 2400*1600*1850mm | Weight | 3000kg | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CXF-W50 CNC Hexagon Milling Lathe
The CXF-W50 CNC Hexagon Milling Lathe is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.
advantage:
A) CNC Turning&milling composite machine can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.One worker can operate 4-6 sets even more, save much cost for factory.
B) CNC Turning&milling composite machine can turning&milling Flat,Square,Hexagons,Polygons etc.
C) CNC Turning&milling composite machine is suitable for diameter-variable processing of polyhedron. Compared with the traditional ways, the machining accuracy of CXF horizontal series have been more increased, this series of machinery is widely used in machinery manufacturing, machinery manufacturing, hardware tools, auto parts, aerospace and draining etc.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXF-W80 |
| piece Dia. | mm | Φ75mm |
| piece Length. | mm | 300mm |
| Max.subtense of turning and milling | mm | 72mm |
| Feed rate X/Z axis. | mm | 200/300mm |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 2000rpm |
| Max.milling head speed | rpm | 2000rpm |
| Motor power of servo apindle | kw | 9KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.012mm |
| Repeated Positioning accuracy | mm | X/Z:0.008mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 3000kgs |
| Dimensions | mm | 2400*1600*1850mm |
| |
