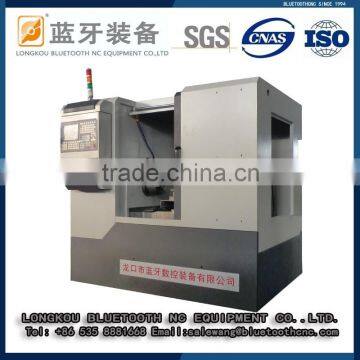

Factory price CXF-W40 CNC Polygon lathe machine for hardware tools

FOB Price

USD $24,700 - $26,500 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	200mm	Place of Origin	Shandong, China
Brand Name	Bluetooth CNC	Model Number	CXF-W40
Voltage	380V	Power(W)	3.7KW
Dimension(LWH)	1600X1400X1800mm	Weight	1800kgs
Certification	ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Factory price CXF-W40 CNC Polygon lathe machine for hardware tools

The CXF-W40 CNC Turning Polygon Lathe with automatic is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.

advantage:

A) CNC Polygon Lathe composite machine can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.One worker can operate 4-6 sets even more, save much cost for factory.

B) CNC Polygon Lathecomposite machine can turning&milling Flat,Square,Hexagons,Polygons etc.

C) CNC Polygon Lathecomposite machine is suitable for diameter-variable processing of polyhedron. Compared with the traditional ways, the machining accuracy of CXF horizontal series have been more increased, this series of machinery is widely used in machinery manufacturing, machinery manufacturing, hardware tools, auto parts, aerospace and draining etc.

Items	UNIT	Main techinical data
Item No.	mm	CXF-W40
piece Dia.	mm	Φ42mm
piece Length.	mm	100mm
Max.subtense of turning and milling	mm	32mm
Feed rate X/Z axis.	mm	100/150mm
Rapid traverse X/Z axis.	m/min	15m/min
Max.cutter head speed	rpm	2000rpm
Max.milling head speed	rpm	2000rpm
Motor power of servo apindle	kw	3.7KW 380V/50HZ
Positioning accuracy	mm	X/Z:0.012mm
Repeated Positioning accuracy	mm	X/Z:0.008mm
NC system		Siemens/Xindai
Total weight	kgs	1800kgs
Dimensions	mm	160014001800mm
