Home > Products > Turning & Milling Lathe > CXK32 CNC Processing Machinery Screwdriver Production Line

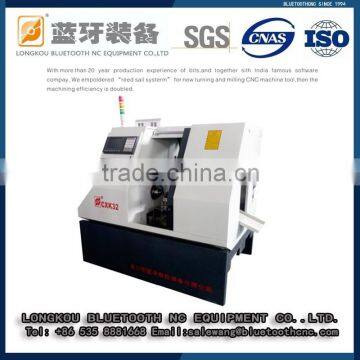

CXK32 CNC Processing Machinery Screwdriver Production Line
USD $18,600 - $18,600
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- QingDao China
You May Like
-
CXF-W80 CNC Lathe Special Purpose Machine
-
CXF-W80 CNC tuning and milling pologon lathe Machine
-
Factory price high precision CXK32 CNC turning and milling machine
-
stringent specification CXF-W60 CNC machine tool for squares, hexagons,polygons
-
Factory price CXF-LS80 horizontal turning and milling machine / CNC lathe/for hexagon
-
New Condition Factory price and Horizontal Type CXF-W40 CNC turning and milling machine for hardware tools
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 200mm | Place of Origin | Shandong, China | |
| Brand Name | BLUETOOTHCNC | Model Number | CXK32 | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1400X1050X1700mm | Weight | 1200KGS | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CXK32 CNC screwdriver machine for PH2 1/4'' bits
CXK32 CNC screwdriver machine for PH or PZ bits can finish turning,milling etc much more process by once clamping on the one end of the bit.CNC screwdriver processiong machine:dedicated to processing screwdrivers.
advantage:
A) CNC turning&milling machine for bit integrate turning, milling, drilling, and other multi - pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) CNC turning&milling machine for bit have high efficient, 8-12pcs/min.
C) CNC turning&milling machine for bit have more Multi-function,can produce: Phillips,Flat,Torx, Pozidriv,Squre,Hexagonal etc.
D) Easy to learn and operate;handles small-volume,large-variety processing.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXK32 |
| Control spindle | mm | Servo drive and motor |
| Max.chuck | mm | 32mm |
| Processing efficiency | pcs/min | 12pcs/min |
| Motor fot X/Z axis | 6N.M servo moto | |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 3000rpm |
| X/Z axis screw | ball screw | |
| X/Z axis guide rail | Linear ball guide | |
| Motor power of servo apindle | kw | 2.2KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.015mm |
| Repeated Positioning accuracy | mm | X/Z:0.01mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 1000kgs |
| Dimensions | mm | 1400X1050X1700mm |
| |
