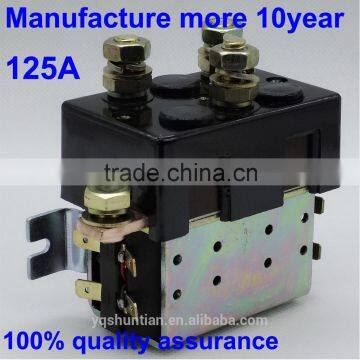

DC88 Magnetic DC Contactors Magnetic Electrical DC Reversing Contactor Solenoid Similar Curtis Albright dc Contactor 12V 125A
- ningbo
You May Like
-
DC182 dc Reversing Contactor 200A Relay
-
SW180 dc Contactor Similar Albright Contactor 48V 200A
-
SW81 SW84 dc Reversing Contactor 125A DC Electromagnetic Reversing
-
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type
-
Single Pole Magnetic Latching dc Contactor Sw80
-
DC Contactor Similar Albright Contactor SW200
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHT | |
| Model Number | DC88 | Electricity Type | DC | |
| Number of Pole | 4 | Phase | 2 | |
| Main Circuit Rating Voltage | Other, 12,24,48,60,72,80,110, etc. | Main Circuit Rating Current | Other, 125A |
Product Description
1.Application
For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc
2.Basic technical data
NO. | Parameters | DC88/24V |
1 | Rated coil volt(VDC) | 12,24,36,48,60,72,110,etc. |
2 | Coil power dissipation(W) | 11~14 |
3 | Rated volt of contact circuit(A) | 125A |
4 | Operating volt in cold state at (20 ±5) °C | Pick-up: Not above 70% of rated coil volt Release: (10%~40%) of rated coil volt |
5 | Max. operating time at rated volt (ms) Coil with no suppression circuit | 30 |
6 | Rated volt of contact circuit(VDC) | 60 |
7 | Pick-up Voltage | (40-70) % of coil rated voltage |
8 | Drop-out Voltage | (5-30) % of coil rated voltage |
9 | Insulation Resistance | Min. 100MΩ at 500VDC |
10 | Puncture strength (volt) | 50HZ 1000 VAC 1 min |
11 | Operate Time | Max. 50mSec. |
12 | Release Time | Max. 50mSec. |
13 | Ambient Temper | -25°C~+60°C |
14 | Electric life | 20000 Ops |
15 | Mechanical life | 100000 |
16 | Working duty | Continuous
|
