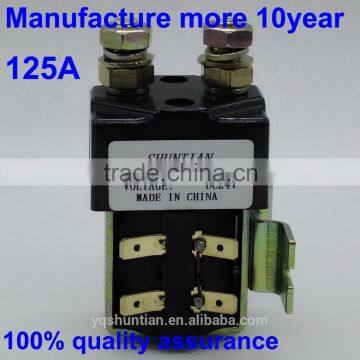

Dynamoelectric storage car parts 24v dc contactor sw80
USD $9 - $12.3
/ Piece
100 Pieces(Min.Order)
- 0 per Month
- ningbo
You May Like
-
SW180 Magnetic Latching Type DC Contactor 200A
-
SW200 dc main contactor 48v 400A dc main magnetic latching
-
DC Contactor with Bus Bar Latching Type SW200 400A
-
12V DC motorcycle flasher relay for scooter dirt bike SW80 dc main magnetic latching
-
DC CONTACTOR MAGNETIC LATCHING RELAY SW80
-
Electric winch DC contactor SW80
Product Details
| Place of Origin | Zhejiang, China | Brand Name | shuntian | |
| Model Number | SW80 | Electricity Type | DC | |
| Number of Pole | 1 | Phase | 1 | |
| Main Circuit Rating Voltage | Other, 12,24,48,60,72,80,110, etc. | Main Circuit Rating Current | Other, 125A |
Product Description
1.Application
For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc
2.Basic technical data
NO. | Parameters | SW80/24V |
1 | Rated coil volt(VDC) | 12,24,36,48,60,72,110, etc. |
2 | Coil power dissipation(W) | 11~14 |
3 | Rated volt of contact circuit(A) | 125A |
4 | Operating volt in cold state at (20 ±5) °C | Pick-up: Not above 70% of rated coil volt Release: (10%~40%) of rated coil volt |
5 | Max. operating time at rated volt (ms) Coil with no suppression circuit | 30 |
6 | Rated volt of contact circuit(VDC) | 60 |
7 | Puncture strength (volt) | 50HZ 1000 VAC 1 min |
8 | Electric life | 20000 Ops |
9 | Mechanical life | 100000 |
10 | Working duty | Continuous
|
