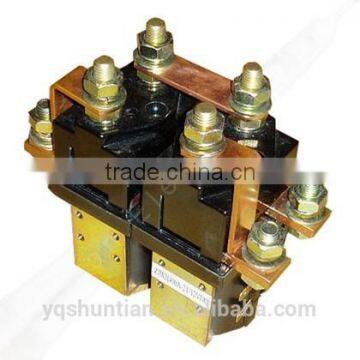

SW202 Motor Reversing Contactor 400A
- ningbo or shanghai
You May Like
-
Emergency Disconnect Switch ED250A
-
SB175amp Connector SB 175/SB-175
-
SW80 Sightseeing Car dc Contactor Storage Battery Car Electric Winch dc Relay 24V 36V 48V 60V
-
Electric Forklifts dc Motor dc Contactor Single Pole Double Throw
-
Factory Good Quality Solenoid Contactor 100A 200A
-
SW182 dc Reversing Contactor 200A Magnetic Latching Type dc Electromagnetic
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHT | |
| Model Number | SW202 | Electricity Type | DC | |
| Number of Pole | 4 | Phase | 2 | |
| Main Circuit Rating Voltage | Other, 12,24,48,60,72,80,110, etc. | Main Circuit Rating Current | Other, 400A |
Product Description
1.Application
For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc
2.Basic technical data
NO. | Parameters | SW202/48V |
1 | Rated coil volt(VDC) | 12,24,36,48,60,72,110,etc. |
2 | Coil power dissipation(W) | 11~14 |
3 | Rated volt of contact circuit(A) | 400A |
4 | Operating volt in cold state at (20 ±5) °C | Pick-up: Not above 70% of rated coil volt Release: (10%~40%) of rated coil volt |
5 | Max. operating time at rated volt (ms) Coil with no suppression circuit | 30 |
6 | Rated volt of contact circuit(VDC) | 60 |
7 | Pick-up Voltage | (40-70) % of coil rated voltage |
8 | Drop-out Voltage | (5-30) % of coil rated voltage |
9 | Insulation Resistance | Min. 100MΩ at 500VDC |
10 | Puncture strength (volt) | 50HZ 1000 VAC 1 min |
11 | Operate Time | Max. 50mSec. |
12 | Release Time | Max. 50mSec. |
13 | Ambient Temper | -25°C~+60°C |
14 | Electric life | 20000 Ops |
15 | Mechanical life | 100000 |
16 | Working duty | Continuous
|
