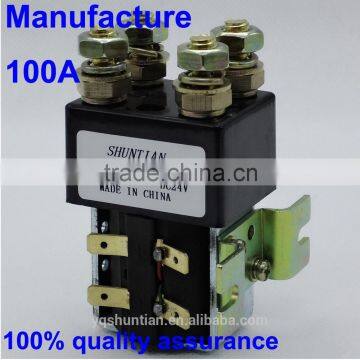

Similar Albright Electrical Magnetic Main dc Contactor SW82 Motor Reversing Bus Bar Latching Type

FOB Price

US$ 11.5 - 14.75 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Application

For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc

2.Basic technical data

NO.	Parameters	SW82/24V
1	Rated coil volt(VDC)	12,24,36,48,60,72,110,etc.
2	Coil power dissipation(W)	11~14
3	Rated volt of contact circuit(A)	125A
4	Operating volt in cold state at (20 ±5) °C	Pick-up: Not above 70% of rated coil volt Release: (10%~40%) of rated coil volt
5	Max. operating time at rated volt (ms) Coil with no suppression circuit	30
6	Rated volt of contact circuit(VDC)	60
7	Pick-up Voltage	(40-70) % of coil rated voltage
8	Drop-out Voltage	(5-30) % of coil rated voltage
9	Insulation Resistance	Min. 100MΩ at 500VDC
10	Puncture strength (volt)	50HZ 1000 VAC 1 min
11	Operate Time	Max. 50mSec.
12	Release Time	Max. 50mSec.
13	Ambient Temper	-25°C~+60°C
14	Electric life	20000 Ops
15	Mechanical life	100000
16	Working duty	Continuous
