Home > Products > DC Contactors > SW822 SW122 similar curtis 1244 Magnetic DC Contactors magnetic electrical DC Contactor similar albright dc contactor

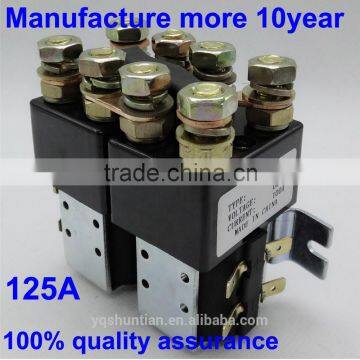

SW822 SW122 similar curtis 1244 Magnetic DC Contactors magnetic electrical DC Contactor similar albright dc contactor
- 0 per Month
- ningbo
You May Like
-
SW822 Dynamoelectric storage car parts 24v dc contactor
-
Dynamoelectric storage car parts 24v dc contactor sw80
-
SW180 Magnetic Latching Type DC Contactor 200A
-
SW200 dc main contactor 48v 400A dc main magnetic latching
-
DC Contactor with Bus Bar Latching Type SW200 400A
-
12V DC motorcycle flasher relay for scooter dirt bike SW80 dc main magnetic latching
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHT | |
| Model Number | SW822 | Electricity Type | DC | |
| Number of Pole | 4 | Phase | 2 | |
| Main Circuit Rating Voltage | Other, 12,24,48,60,72,80,110, etc. | Main Circuit Rating Current | Other, 125A |
Product Description
1.Application
For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc
2.Basic technical data
NO. | Parameters | SW822 |
1 | Rated coil volt(VDC) | 12,24,36,48,60,72,110,etc. |
2 | Coil power dissipation(W) | 11~14 |
3 | Rated volt of contact circuit(A) | 125A |
4 | Operating volt in cold state at (20 ±5) °C | Pick-up: Not above 70% of rated coil volt Release: (10%~40%) of rated coil volt |
5 | Max. operating time at rated volt (ms) Coil with no suppression circuit | 30 |
6 | Rated volt of contact circuit(VDC) | 60 |
7 | Pick-up Voltage | (40-70) % of coil rated voltage |
8 | Drop-out Voltage | (5-30) % of coil rated voltage |
9 | Insulation Resistance | Min. 100MΩ at 500VDC |
10 | Puncture strength (volt) | 50HZ 1000 VAC 1 min |
11 | Operate Time | Max. 50mSec. |
12 | Release Time | Max. 50mSec. |
13 | Ambient Temper | -25°C~+60°C |
14 | Electric life | 20000 Ops |
15 | Mechanical life | 100000 |
16 | Working duty | Continuous
|
