12x12 HDMI video switcher
US$ 1 - 2
/ Unit
1 Unit(Min. Order)
- SHANGHAI
- T/T
You May Like
Product Details
| Brand Name | Odin |
Product Description
Specifications
12x12 HDMI video switcherResolution 1920*1080
Standard HDMI 1.3 Port
polling function
CE

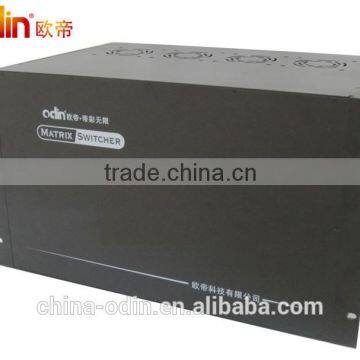

12x12 HDMI video switcher
Model: DC-MAX1212-H
1.No compression and decompression for the signal,poin-to-point design
2.Automatic adjustment for the signal gain, HDMI signal with long distance transmission
3.Built-in 10 groups of adjustable plan,can switch any output in one seconds,Support switching random and rapidly
4. Automatic energy-saving design, automatically shut off the unused port
5. Support Resolution up to 1920*1080 @60Hz
6. Support polling function
| Specifications | Model | DC-MAX1212-H |
INPUT | Port | HDMI-A |
| Resolution | HDMI: max 1920×1080@60Hz | |
| Card slot | 4 inputs each card,total 3 cards with 12 inputs | |
OUTPUT | Port | HDMI-A |
| Resolution | 1920*1080@60Hz | |
| Card slot | 4 outputs each card,total 3 cards with 12 outputs | |
CONTROL | Input | Standard RS232 input |
| Output | Standard RS232 input | |
| Plan | Max 32 Groups | |
| Wheel cut | support | |
| Switch Time | Single channel <20ms | |
| Input impedance | HDMI:100Ω | |
| Software | MagicTunning Software | |
OTHER | Power | 100-240V AC,50/60Hz |
| Consumption | <60W | |
| Working Temperature | -10°C~+55°C | |
| Storage Temperature | 10%~90% | |
| Size | standard 6U Case | |
| Weight | About 8 Kg | |
| Working hours | 7x24 |
