72 inputs 72 outputs HDMI switcher
US$ 1 - 2
/ Unit
1 Unit(Min. Order)
- SHANGHAI
- T/T
You May Like
Product Description
Specifications
72 inputs 72 outputs HDMI switcherResolution 1920*1200
Standard HDMI 1.3 Port
polling function
poin-to-point design

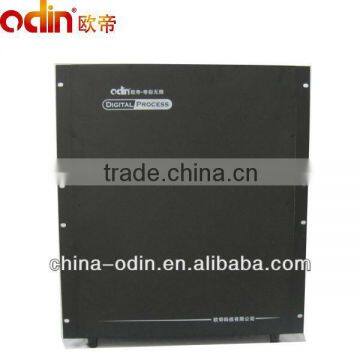

72 inputs 72 outputs HDMI switcher
HDMI switcher HDMI switcher HDMI switcher HDMI switcher HDMI switcher
Model: DC-MAX7272-H
1.No compression and decompression for the signal,poin-to-point design
2.Automatic adjustment for the signal gain, HDMI signal with long distance transmission
3.Built-in 10 groups of adjustable plan,can switch any output in one seconds,Support switching random and rapidly
4. Automatic energy-saving design, automatically shut off the unused port
5. Support Resolution up to 1920*1200@60Hz
6. Support polling function
| Specifications | Model | DC-MAX7272-H |
| Description | HDMI Matrix | 72 inputs and 72 outputs |
INPUT | Port | Standard HDMI 1.3 Port,18 card slots, 72 way inputs |
| Resolution | 1920*1200@60Hz | |
| EDID | Odin Standard Digital EDID | |
| Signal adjustment | Independent data adjustment for each port,the max length of receiving HDMI signal is 60 meters | |
| Bandwidth | Unipath 2.25G | |
OUTPUT | Port | Standard HDMI 1.3 Port,18 card slots, 72 way outputs |
| Resolution | 1920*1200@60Hz | |
| Bandwidth | Unipath 3.2G | |
CONTROL | Input | Standard RS232 input |
| Output | Standard RS232 input | |
| Keyboard | None | |
| Switch Time | Single channel <1ms,10 channels <1S | |
| Plan | Max 10 Groups | |
| Software | MagicTunning Software | |
OTHER | Power | 220VAC/50Hz |
| Consumption | 600W | |
| Working Temperature | 0°C~+55°C | |
| Storage Temperature | 10%~90% | |
| Size | 432.22mm*280mm*533.4mm(19”12U) | |
| Weight | 20Kg | |
| Installation | Cabinets or Desktop installation | |
| Shock Resistance | 1.2M HIGH Cement floor (including packaging) | |
| ESD | 8KVDC (HDMI) |
