18x18 video wall matrix
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Odin | |
| Model Number | DC-MAX1818-H |
Product Description
Specifications
18x18 video wall matrixResolution 1920*1200
Standard HDMI 1.3 Port
polling function
poin-to-point design
18x18 video wall matrix
video wall matrix video wall matrix video wall matrix

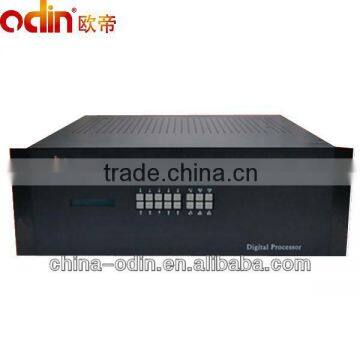

Model: DC-MAX1818-H
1.No compression and decompression for the signal,poin-to-point design
2.Automatic adjustment for the signal gain, HDMI signal with long distance transmission
3.Built-in 10 groups of adjustable plan,can switch any output in one seconds,Support switching random and rapidly
4. Automatic energy-saving design, automatically shut off the unused port
5. Support Resolution up to 1920*1200@60Hz
6. Support polling function
Model | DC-MAX1818-H | |
INPUT | Port | Standard HDMI 1.3 Port |
2 inputs each card | ||
Resolution | 1920*1200@60Hz | |
EDID | Odin Standard Digital EDID | |
Signal adjustment | independent data adjustment for each port,the max length of receiving HDMI signal is 60 meters | |
Bandwidth | Unipath 2.25G | |
OUTPUT | Port | Standard HDMI 1.3 Port |
2 outputs each card | ||
Resolution | 1920*1200@60Hz | |
Bandwidth | Unipath 2.25G | |
CONTROL | Input | Standard RS232 |
Output | Standard RS232 | |
Keyboard | None | |
Software | MagicTunning Software | |
Switch Time | singal channel <1ms, | |
Plan | Max 10 Groups | |
OTHER | Power | 220VAC/50Hz |
Consumption | 45W | |
Working Temperature | 0°C~+55°C | |
Storage Temperature | 10%~90% | |
Size | 432.22mm*250mm*177.8mm(WxDxH 19'' 4U) | |
Weight | 4.5Kg | |
Installation | Cabinets or Desktop installation | |
Shock Resistance | 1.2M HIGH Cement floor (including packaging) | |
ESD | 8KVDC (HDMI) |
