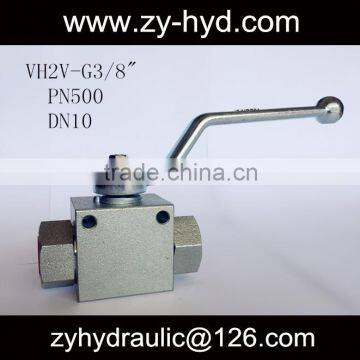

PN400 VH2V series 3/8 bsp high pressure ball valve 7250psi
- 10000 Set / Sets per Month
- Ningbo Port or Shanghai Port
- T/T
You May Like
-
VH2V 2 way type with mounting holess 7250 psi high pressure ball valve
-
RS2 series 2 way PN500 with holes high pressure ball valve
-
inteva type 2 way high pressure ball valve with mounting holes
-
MHA type 2 way high pressure ball valve with mounting holes
-
PN400 VH3V series 3/8 bsp high pressure ball valve 7250psi
-
Inteva type DN20 VH3V series 3/4 bsp high pressure ball valve 7250psi
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | High Pressure | Power | Manual | |
| Material | Other, carbon steel 304 or 316 stainless steel | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 6,10,15,20,25,32,40,50mm | |
| Place of Origin | Zhejiang, China | Model Number | VH2V-G3/8 | |
| Brand Name | ZY-HYD | Application | Commercial Kitchen |
Product Description
Zhongya is a China manufacturer for hydraulic valves over 28 years, we produce
hydraulic ball valves, high pressure ball valves, threaded ball valve, flanged ball valve, stainless steel ball valve,carbon steel ball valve, oil cylinders, multi-stage cylinders, ect.
And, we also can produce according to customer's drawing.
We export with own brand -- ZY-HYD, and also can supply OEM service.
Our customers are cover Germany, USA,Italy,Spain, France,Australia, India, Turkey, Singapore,ect.
Specification of carbon steel ball valves (steel ball valve)
1. Part Number: KHB(BKH)
2. Pressure: 500bar (7250psi)
3. Diameter: 4, 6, 10, 13, 20, 25,32 40, 50mm
4. Size: 1/8" ~ 2"
5. Temperature: -25~+100oC (NBR), -30~+170oC (FPM)
6. Material: carbon steel, stainless steel (SS304, SS316, SS316L)
7. Application: Hydraulic oil and water
8.Dimension
Model | DN | LW | RA | ‘d1 | i | L | L1 | B | H | ‘h1 | ‘h2 | ‘h3 | SW1 | SW2 |
KHB-G1/8 | 04 | 06 | --- | G1/8 | 10 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 19 |
KHB-G1/4 | 06 | 06 | --- | G1/4 | 14 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 22 |
KHB-G3/8 | 10 | 10 | --- | G3/8 | 14 | 72 | 42 | 32 | 53 | 17 | 40 | 8 | 09 | 27 |
KHB-G1/2 | 13 | 12 | --- | G1/2 | 16 | 82 | 47 | 35 | 53 | 17 | 40 | 8 | 09 | 30 |
KHB-G1/2 | 16 | 15 | --- | G1/2 | 16 | 82 | 47 | 38 | 62 | 19 | 45 | 11 | 12 | 32 |
KHB-G3/4 | 20 | 20 | --- | G3/4 | 18 | 95 | 60 | 48 | 75 | 24.5 | 57 | 11 | 14 | 41 |
KHB-G1 | 25 | 25 | --- | G1 | 20.5 | 113 | 65 | 57 | 82 | 28.5 | 64 | 11 | 14 | 50 |
KHB-G1.1/4 | 32 | 30 | --- | G1.1/4 | 22 | 110 | 84 | 75 | 102.7 | 37.5 | 84.2 | 12 | 17 | 60 |
KHB-G1.1/2 | 40 | 38 | --- | G1.1/2 | 24 | 130 | 91 | 85 | 113.7 | 42.5 | 95.2 | 12 | 17 | 70 |
KHB-G2 | 50 | 48 | --- | G2 | 26 | 140 | 100 | 105 | 131.2 | 52.5 | 112.7 | 12 | 17 | 80 |
