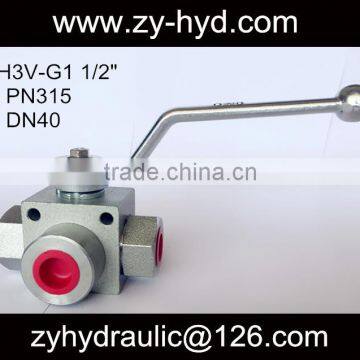

L port VH3V high pressure ball valve with holes

FOB Price

USD $5 - $50 / Set

50 Sets(Min.Order)

Port Ningbo Port or Shanghai Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Ball
Pressure	High Pressure	Power	Manual
Material	Other, carbon steel 304 or 316 stainless steel	Temperature of Media	Normal Temperature
Media	Oil	Port Size	6,10,15,20,25,32,40,50mm
Place of Origin	Zhejiang, China	Model Number	VH3V-G1 1/2
Brand Name	ZY-HYD	Application	Commercial Kitchen

Product Description

Zhongya is a China manufacturer for hydraulic valves over 28 years, we produce

hydraulic ball valves, high pressure ball valves, threaded ball valve, flanged ball valve, stainless steel ball valve,carbon steel ball valve, oil cylinders, multi-stage cylinders, ect.

And, we also can produce according to customer's drawing.

We export with own brand -- ZY-HYD, and also can supply OEM service.

Our customers are cover Germany, USA,Italy,Spain, France,Australia, India, Turkey, Singapore,ect.

Specification of carbon steel ball valves (steel ball valve)

1. Part Number: KHB(BKH)

2. Pressure: 500bar (7250psi)

3. Diameter: 4, 6, 10, 13, 20, 25,32 40, 50mm

4. Size: 1/8" ~ 2"

5. Temperature: -25~+100^oC (NBR), -30~+170^oC (FPM)

6. Material: carbon steel, stainless steel (SS304, SS316, SS316L)

7. Application: Hydraulic oil and water

8.Dimension

Model	DN	LW	RA	‘d1	i	L	L1	B	H	‘h1	‘h2	‘h3	SW1	SW2
KHB-G1/8	04	06	---	G1/8	10	69	35	25	48	13	35	8	09	19
KHB-G1/4	06	06	---	G1/4	14	69	35	25	48	13	35	8	09	22
KHB-G3/8	10	10	---	G3/8	14	72	42	32	53	17	40	8	09	27
KHB-G1/2	13	12	---	G1/2	16	82	47	35	53	17	40	8	09	30
KHB-G1/2	16	15	---	G1/2	16	82	47	38	62	19	45	11	12	32
KHB-G3/4	20	20	---	G3/4	18	95	60	48	75	24.5	57	11	14	41
KHB-G1	25	25	---	G1	20.5	113	65	57	82	28.5	64	11	14	50
KHB-G1.1/4	32	30	---	G1.1/4	22	110	84	75	102.7	37.5	84.2	12	17	60
KHB-G1.1/2	40	38	---	G1.1/2	24	130	91	85	113.7	42.5	95.2	12	17	70
KHB-G2	50	48	---	G2	26	140	100	105	131.2	52.5	112.7	12	17	80
