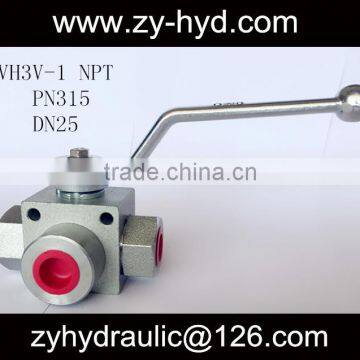

L Port VH3V NPT Thread High Pressure Ball Valve With Holes
- Ningbo Port or Shanghai Port
- T/T
You May Like
-
1 Inch Hydac Standard KHM Searies NPT Female Thread High Pressure Ball Valve
-
KHM MKH KHB BKH 2 or 3 Way High Pressure Ball Valve 1000 WOG
-
KHM MKH KHB BKH 2 or 3 Way Male Thread High Pressure Ball Valve 7250psi
-
KHB BKH Type Hydraulic 2 Way External Thread Carbon Steeel
-
DN10 Hydac Standard KHB MKH Searies LR Male Thread High Pressure Ball Valve
-
DN13 DIN 2353 Tube Fitting Connection High Pressure Ball Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | High Pressure | Power | Manual | |
| Material | Other, carbon steel 304 or 316 stainless steel | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 6,10,15,20,25,32,40,50mm | |
| Place of Origin | Zhejiang, China | Model Number | VH3V-G1 1/2 | |
| Brand Name | ZY-HYD | Application | Commercial Kitchen |
Product Description
Zhongya is a China manufacturer for hydraulic valves over 28 years, we produce
hydraulic ball valves, high pressure ball valves, threaded ball valve, flanged ball valve, stainless steel ball valve,carbon steel ball valve, oil cylinders, multi-stage cylinders, ect.
And, we also can produce according to customer's drawing.
We export with own brand -- ZY-HYD, and also can supply OEM service.
Our customers are cover Germany, USA,Italy,Spain, France,Australia, India, Turkey, Singapore,ect.
Specification of carbon steel ball valves (steel ball valve)
1. Part Number: KHB(BKH)
2. Pressure: 500bar (7250psi)
3. Diameter: 4, 6, 10, 13, 20, 25,32 40, 50mm
4. Size: 1/8" ~ 2"
5. Temperature: -25~+100oC (NBR), -30~+170oC (FPM)
6. Material: carbon steel, stainless steel (SS304, SS316, SS316L)
7. Application: Hydraulic oil and water
8.Dimension
Model | DN | LW | RA | ‘d1 | i | L | L1 | B | H | ‘h1 | ‘h2 | ‘h3 | SW1 | SW2 |
KHB-G1/8 | 04 | 06 | --- | G1/8 | 10 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 19 |
KHB-G1/4 | 06 | 06 | --- | G1/4 | 14 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 22 |
KHB-G3/8 | 10 | 10 | --- | G3/8 | 14 | 72 | 42 | 32 | 53 | 17 | 40 | 8 | 09 | 27 |
KHB-G1/2 | 13 | 12 | --- | G1/2 | 16 | 82 | 47 | 35 | 53 | 17 | 40 | 8 | 09 | 30 |
KHB-G1/2 | 16 | 15 | --- | G1/2 | 16 | 82 | 47 | 38 | 62 | 19 | 45 | 11 | 12 | 32 |
KHB-G3/4 | 20 | 20 | --- | G3/4 | 18 | 95 | 60 | 48 | 75 | 24.5 | 57 | 11 | 14 | 41 |
KHB-G1 | 25 | 25 | --- | G1 | 20.5 | 113 | 65 | 57 | 82 | 28.5 | 64 | 11 | 14 | 50 |
KHB-G1.1/4 | 32 | 30 | --- | G1.1/4 | 22 | 110 | 84 | 75 | 102.7 | 37.5 | 84.2 | 12 | 17 | 60 |
KHB-G1.1/2 | 40 | 38 | --- | G1.1/2 | 24 | 130 | 91 | 85 | 113.7 | 42.5 | 95.2 | 12 | 17 | 70 |
KHB-G2 | 50 | 48 | --- | G2 | 26 | 140 | 100 | 105 | 131.2 | 52.5 | 112.7 | 12 | 17 | 80 |
