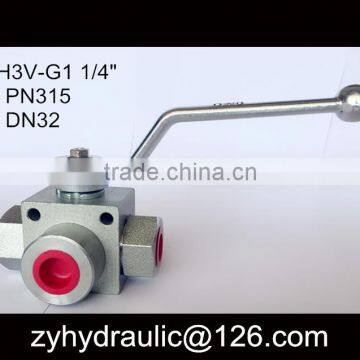

V3RH Series DN40 Bsp High Pressure Ball Valve With Holes
- Ningbo Port or Shanghai Port
- T/T
You May Like
-
L Port VH3V High Pressure Ball Valve With Holes
-
Stainless Steel BKH Series 3 Way Bsp High Pressure Ball Valve
-
Flutec KHB-1/2 NPT High Pressure 7250 Psi 2 Way Full Port Manual Ball Valve
-
KHB Type 1/4 Npt Thread 2 Way High Pressure 7250psi Ball Valve
-
HYDAC Standard 3/8 Npt Female Thread High Pressure Ball Valve DIN2535
-
HYDAC Standard DN20 Npt 3/4 Female Thread High Pressure Ball Valve DIN2535
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | High Pressure | Power | Manual | |
| Material | Other, carbon steel 304 or 316 stainless steel | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 6,10,15,20,25,32,40,50mm | |
| Place of Origin | Zhejiang, China | Model Number | VH3V-G1 1/4 | |
| Brand Name | ZY-HYD | Application | Commercial Kitchen |
Product Description
Zhongya is a China manufacturer for hydraulic valves over 28 years, we produce
hydraulic ball valves, high pressure ball valves, threaded ball valve, flanged ball valve, stainless steel ball valve,carbon steel ball valve, oil cylinders, multi-stage cylinders, ect.
And, we also can produce according to customer's drawing.
We export with own brand -- ZY-HYD, and also can supply OEM service.
Our customers are cover Germany, USA,Italy,Spain, France,Australia, India, Turkey, Singapore,ect.
Specification of carbon steel ball valves (steel ball valve)
1. Part Number: KHB(BKH)
2. Pressure: 500bar (7250psi)
3. Diameter: 4, 6, 10, 13, 20, 25,32 40, 50mm
4. Size: 1/8" ~ 2"
5. Temperature: -25~+100oC (NBR), -30~+170oC (FPM)
6. Material: carbon steel, stainless steel (SS304, SS316, SS316L)
7. Application: Hydraulic oil and water
8.Dimension
Model | DN | LW | RA | ‘d1 | i | L | L1 | B | H | ‘h1 | ‘h2 | ‘h3 | SW1 | SW2 |
KHB-G1/8 | 04 | 06 | --- | G1/8 | 10 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 19 |
KHB-G1/4 | 06 | 06 | --- | G1/4 | 14 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 22 |
KHB-G3/8 | 10 | 10 | --- | G3/8 | 14 | 72 | 42 | 32 | 53 | 17 | 40 | 8 | 09 | 27 |
KHB-G1/2 | 13 | 12 | --- | G1/2 | 16 | 82 | 47 | 35 | 53 | 17 | 40 | 8 | 09 | 30 |
KHB-G1/2 | 16 | 15 | --- | G1/2 | 16 | 82 | 47 | 38 | 62 | 19 | 45 | 11 | 12 | 32 |
KHB-G3/4 | 20 | 20 | --- | G3/4 | 18 | 95 | 60 | 48 | 75 | 24.5 | 57 | 11 | 14 | 41 |
KHB-G1 | 25 | 25 | --- | G1 | 20.5 | 113 | 65 | 57 | 82 | 28.5 | 64 | 11 | 14 | 50 |
KHB-G1.1/4 | 32 | 30 | --- | G1.1/4 | 22 | 110 | 84 | 75 | 102.7 | 37.5 | 84.2 | 12 | 17 | 60 |
KHB-G1.1/2 | 40 | 38 | --- | G1.1/2 | 24 | 130 | 91 | 85 | 113.7 | 42.5 | 95.2 | 12 | 17 | 70 |
KHB-G2 | 50 | 48 | --- | G2 | 26 | 140 | 100 | 105 | 131.2 | 52.5 | 112.7 | 12 | 17 | 80 |
