Through-hole hydraulic 3 jaw vertical oil operated lathe chuck used for cnc machine
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hydraulic 3 jaw vertical through-hole oil operated drilling chucks for lathe machine
-
Through-hole 3 jaw vertical hydraulic oil operated safety chuck for mini lathe
-
3 jaw Vertical Hydraulic Power Chuck
-
YK2-8Two Jaw 8 inch Hydraulic Through-hole Dynamic Power Lathe Chuck
-
3 jaw vertical through-hole cnc hydraulic oil drill chuck small power chuck
-
YK2-6 Two Jaw 6inch Hydraulic Through-hole Dynamic Clamping Tool Power Chuck
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | YK3-12''L | Power | Hydraulic | |
| Number of Jaws | 3 |
Product Description

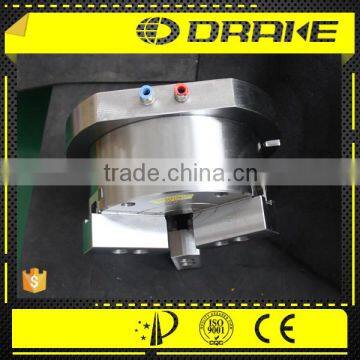

Through-hole hydraulic 3 jaw vertical oil operated lathe chuck used for cnc machine
Technical features:
1. Patent product, vertical type with baseboard.
2. Super thin body, easy retrofit.
3. Accuracy, within 0.03mm.
4. Pneumatic operation Standard.
5. This chuck is applicable for machining center, driller and miller.
6. 2 jaw and 4 jaware available.
7. Rigid and short construction makes the stationary 3 jaw chucks ideal for
operating in machining centers
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | D | D1 | d | L1 | L2 | L3 | H | H1 | h | p |
| YK3-04L" | 115 | 160 | - | 2~15 | 120 | - | 116 | 92 | 20 | 14 |
| YK3-05L" | 135 | 175 | 20 | 2~15 | 140 | - | 120 | 97 | 26 | 14 |
| YK3-06L" | 172 | 218 | 35 | 2~17 | 180 | - | 142 | 109 | 26 | 20 |
| YK3-08L" | 208 | 265 | 40 | 2~17 | 220 | - | 155 | 115 | 26 | 25 |
| YK3-10L" | 252 | 310 | 60 | 2~20 | 260 | - | 157 | 115 | 26 | 30 |
| YK3-12L" | 322 | 400 | 80 | 2~20 | 340 | 150 | 185 | 133 | 30 | 30 |
| YK3-15L" | 400 | 480 | 100 | 2~20 | 430 | 150 | 220 | 148 | 35 | 43 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Jaw Stroke (Diameter) (mm) | Max. static clamping force (kgf) | Max. static holding force (kgf) | Permissible pressure (Mpa) | Clamping range | Holding range | Net Weight (kg) |
| YK3-04L" | 3.2 | 2440 | 1630 | 0.4-1.5 | 3-115 | 15-120 | 8 |
| YK3-05L" | 3.7 | 3060 | 2040 | 0.4-1.5 | 5-130 | 15-140 | 11 |
| YK3-06L" | 4.2 | 5300 | 3460 | 0.4-1.5 | 5-170 | 20-180 | 18 |
| YK3-08L" | 5 | 8360 | 5100 | 0.4-1.5 | 10-210 | 25-230 | 28 |
| YK3-10L" | 6.5 | 11520 | 7140 | 0.4-1.5 | 20-250 | 30-260 | 40 |
| YK3-12L" | 8.5 | 13660 | 9990 | 0.4-1.0 | 30-320 | 40-340 | 75 |
| YK3-15L" | 12 | 19890 | 13260 | 0.4-1.0 | 40-400 | 60-420 | 120 |
Through-hole hydraulic 3 jaw vertical lathe chuck Through-hole hydraulic 3 jaw vertical lathe chuck Through-hole hydraulic 3 jaw vertical lathe chuck
