Two Jaw 12 inch Closed Center Power Chuck Working Holder Fixture
- 10258 Set / Sets per Month
- SHANGHAI GUANGZHOU SHENZHEN NINGBO QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Three jaw front mounted Thru-hole Pneumatic Power chuck for CNC lathe
-
YK3-15L Vertical Through-hole Hydraulic Work Holding Fixtures
-
YK3-12L Vertical Through-hole Hydraulic Lathe Work Holding Fixture
-
YK3-10L Vertical Through-hole wood lathe tools Power Chuck for CNC Machining Center
-
QZ3 Front-load Pneumatic Working Holder with 12 inch for CNC Lathe Machining
-
QZ3 Front-load Pneumatic Power Lathe Fixture with 10 inch for CNC Machining Center
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | YS2-12" hydraulic lathes chuck | Power | Hydraulic | |
| Number of Jaws | 2 |

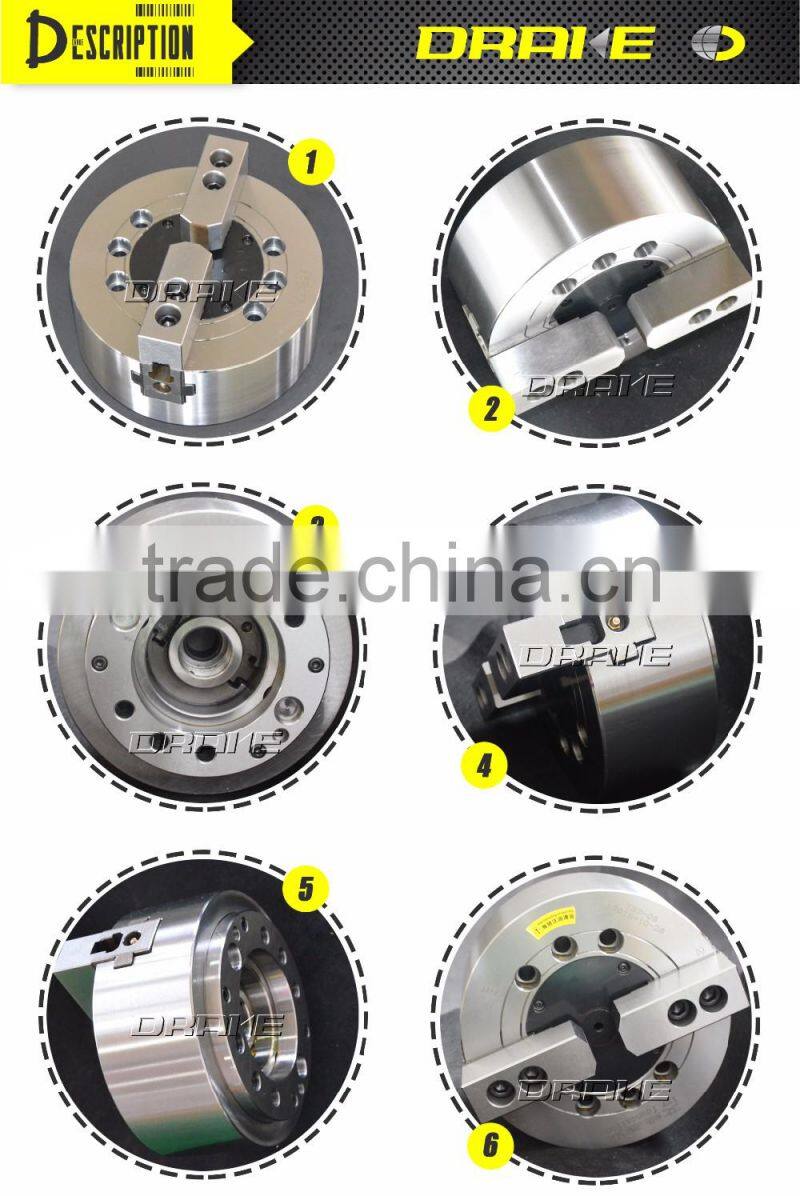

Product Description

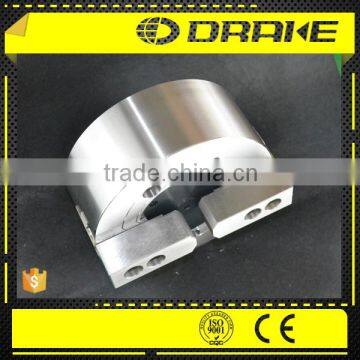

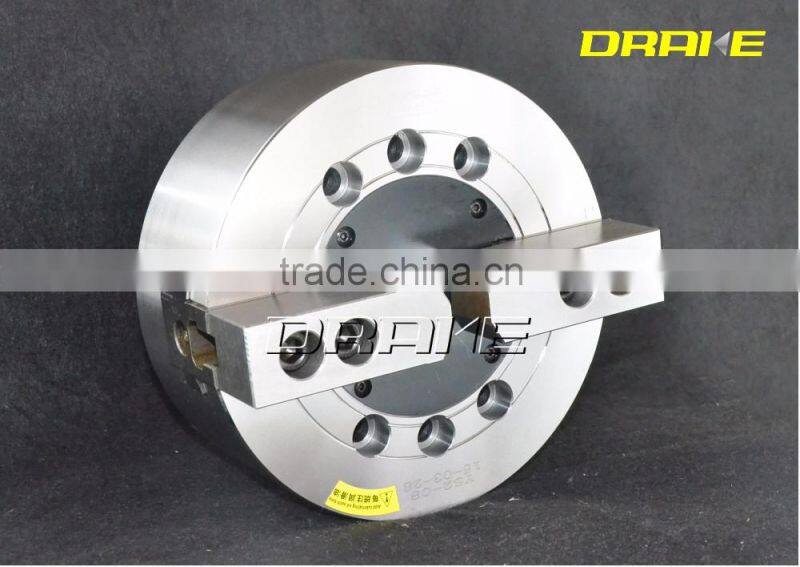

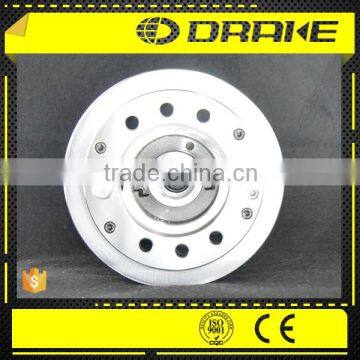

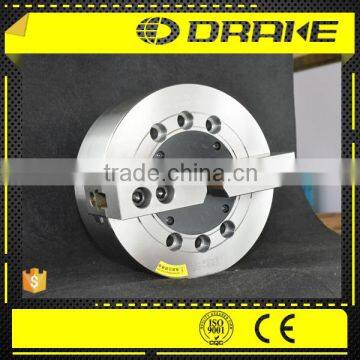

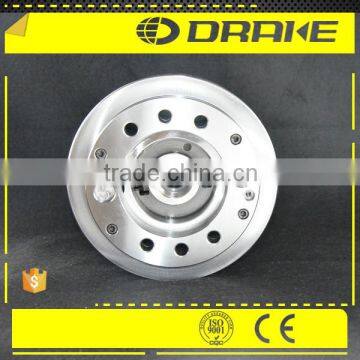

Two Jaw 12 inch Closed Center Power Chuck Working Holder Fixture
Technical features:
1. Adopt the advanced alloy steel material, all with the surface by surface hardening
treatment, in order to improve the accuracy and durability.
2. With flange connection, A connection.
3. Suitable for bench lathe.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

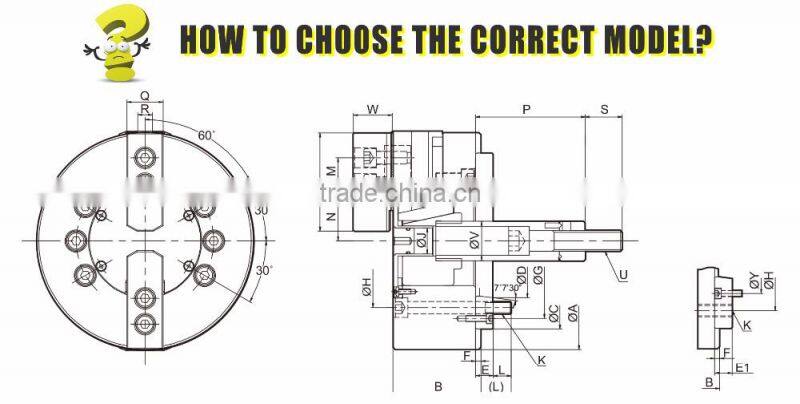

Size Parameter
| Model/Spec | A | B | C (h6) | D | E | E1 | F | G | H | J | K | L | M | N (max.) |
| YS2-06" | 169 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.4 | 21 | 6-M10×1.5P | 14 | 20 | 37.8 |
| YS2-08" | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 25 | 6-M12×1.75P | 18 | 25 | 46.3 |
| YS2-10" | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 | 6-M16×2P | 25 | 30 | 51.4 |
| YS2-12" | 304 | 106 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 | 34 | 6-M16×2P | 25 | 30 | 60.7 |
| Model/Spec | N (min.) | O (max.) | O (min.) | P (max.) | P (min.) | Q | R | S | U | V | W | X | Y |
| YS2-06" | 33.25 | 18 | 7.5 | 101.5 | 81.5 | 31 | 12 | 36 | M16×2P | 34 | 39 | 73 | - |
| YS2-08" | 41.9 | 22.5 | 9 | 127 | 106 | 35 | 14 | 36 | M20×2.5P | 38 | 42 | 95 | 104.8 |
| YS2-10" | 47 | 37.5 | 10.5 | 158 | 133 | 40 | 16 | 36 | M20×2.5P | 45 | 46 | 110 | 133.4 |
| YS2-12" | 55.45 | 47 | 11 | 163 | 133 | 50 | 18 | 36 | M20×2.5P | 50 | 54 | 130 | - |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Nose of spindle | Plunger Stroke (mm) | Jaw Stroke (Diam) (mm) | Max. Speed (r.p.m) | Max. Pull Force (kgf) | Max. Gripping Force (kgf) | Max. Hydr. Pressure (kgf/cm²) | Net weight (kg) | Matching Cylinder | Gripping Ranger |
| YS2-06" | A25 | 20 | 8.5 | 5000 | 1220 | 3460 | 17.3 | 11.1 | SH100 | Ø18~Ø165 |
| YS2-08" | A26 (A25) | 21 | 8.8 | 4000 | 1630 | 4990 | 16.3 | 21.3 | SH125 | Ø26~Ø210 |
| YS2-10" | A28 (A25) | 25 | 8.8 | 3500 | 1930 | 7140 | 19 | 32.6 | SH150 | Ø26~Ø254 |
| YS2-12" | A28 | 30 | 10.5 | 3000 | 2750 | 10300 | 18.4 | 57 | SH200 | Ø26~Ø304 |

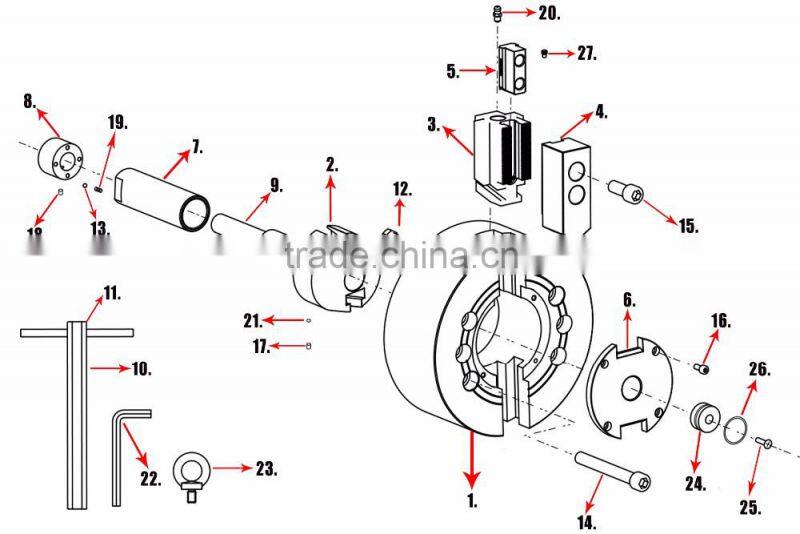

| No. | Name | No. | Name |
| 1 | Body | 15 | Hex. socket head bolt |
| 2 | Wedge plunger | 16 | Hex. socket head bolt |
| 3 | Master jaw | 17 | Set screw |
| 4 | Soft jaw | 18 | Set screw |
| 5 | T-nut | 19 | Steel ball |
| 6 | Cover | 20 | Grease nipple |
| 7 | Draw tube | 21 | Pb ball |
| 8 | Draw nut | 22 | Hex. socket srew key |
| 9 | Draw bolt | 23 | Eyebolt |
| 10 | Handle body | 24 | Cover plug |
| 11 | Handle pin | 25 | Fist Head Cap Screw |
| 12 | Stop bolt | 26 | O-ring |
| 13 | Spring | 27 | Rivet |
| 14 | Hex. socket head bolt |

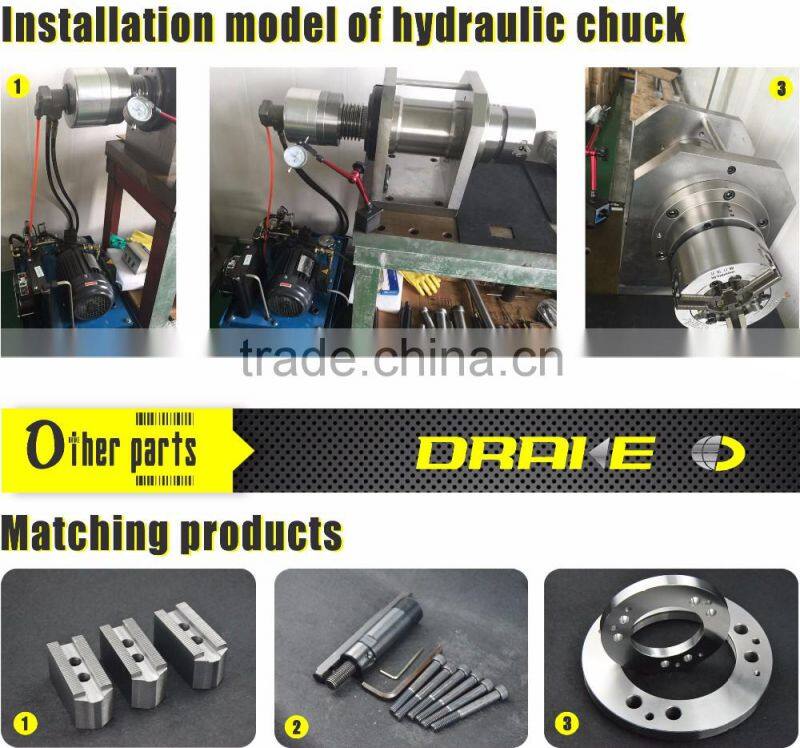

The matching products including:
1. Soft jaws.
2. Hex. socket head bolt, draw tube, draw nut, handle pin, handle body
3. Adaptor plate
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
