3 Jaw Solid Pneumatic High Precision Advanced Alloy Chuck for CNC Lathe
- 10202 Set / Sets per Month
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
5 inch 2 Jaw Through-hole High Clamping Accuracy Hydraulic Power Lathe Chuck
-
Two Jaw 12 inch Closed Center Power Chuck Working Holder Fixture
-
Three jaw front mounted Thru-hole Pneumatic Power chuck for CNC lathe
-
YK3-15L Vertical Through-hole Hydraulic Work Holding Fixtures
-
YK3-12L Vertical Through-hole Hydraulic Lathe Work Holding Fixture
-
YK3-10L Vertical Through-hole wood lathe tools Power Chuck for CNC Machining Center
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | QS3-08'' | Power | Pneumatic | |
| Number of Jaws | 3 |
Product Description

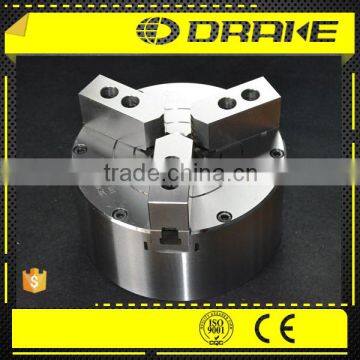

3 Jaw Solid Pneumatic High Precision Advanced Alloy Chuck for CNC Lathe
Technical features:
1. This chuck suitable for clamping irregular shaped workpieces
2. This series of chuck comes with built-in cylinder structure, adopt the advanced alloy
steel material, all with the surface by surface hardening treatment, in order to
improve the accuracy and durability.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec. | D | D1 | D2 | H | H1 | h | P | z-d |
| QS3-04" | 115 | 72 | 100 | 96 | 72 | 3 | 16 | 3-M8 |
| QS3-05" | 145 | 95 | 108 | 118 | 85 | 4 | 18 | 3-M8 |
| QS3-06" | 180 | 130 | 142 | 130 | 93 | 4 | 20 | 3-M8 |
| QS3-08" | 208 | 165 | 180 | 136 | 100 | 5 | 25 | 3-M10 |
| QS3-10" | 252 | 206 | 226 | 143 | 102 | 5 | 30 | 3-M12 |
| QS3-12" | 322 | 270 | 290 | 160 | 115 | 6 | 30 | 6-M12 |
| QS3-15" | 400 | 340 | 368 | 168 | 118 | 6 | 43 | 6-M16 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
Model/Spec. | Jaw Stroke (Diameter) (mm) | Maximum static clamping force(kgf) | Maximum static holding force(kgf) |
Permissible pressure(mm) | Limit speed (r/min) | Clamping range | Holding range | Net weight (Kg) |
| QS3-04" | 3.2 | 2040 | 1170 | 0.4-0.8 | 4500 | 2-120 | 15-120 | 5.2 |
| QS3-05" | 3.7 | 2850 | 1830 | 0.4-0.8 | 4000 | 3-140 | 15-140 | 8 |
| QS3-06" | 4.2 | 4890 | 2650 | 0.4-0.8 | 3600 | 4-180 | 18-180 | 14 |
| QS3-08" | 5 | 7140 | 4280 | 0.4-0.8 | 3300 | 5-220 | 20-240 | 23 |
| QS3-10" | 6.5 | 9280 | 6120 | 0.4-0.8 | 3000 | 10-260 | 30-280 | 35 |
| QS3-12" | 8.5 | 14070 | 9480 | 0.4-0.8 | 2500 | 20-350 | 40-360 | 70 |
| QS3-15" | 12 | 19780 | 15000 | 0.4-0.8 | 2000 | 20-420 | 60-440 | 118 |
| No. | Name | No. | Name |
| 1 | Hose fitting M6 | 9 | cket head bolt |
| 2 | cket head bolt | 10 | Grease nipple |
| 3 | Body | 11 | Center fixed cap |
| 4 | O-type sealing ring | 12 | Center fixed cap connection screw |
| 5 | Cylinder O-type sealing ring | 13 | Soft jaw |
| 6 | Plunger | 14 | Soft jaw connection screw |
| 7 | Cover plate | 15 | Master jaw |
| 8 | Cover plate O-type sealing ring | 16 | Y-type sealing ring |
The matching products including:
1. Soft jaws.
2. Oil-water separator, manual solenoid valve.
3. Air hose, foot-switch, Hex. socket head bolt, axle sleeve.
4. Pneumatic controller.
3 Jaw Solid Pneumatic power chuck 3 Jaw Solid Pneumatic power chuck 3 Jaw Solid Pneumatic power chuck 3 Jaw Solid Pneumatic power chuck
