Home > Products > Power chuck > YK3-12L Vertical Through-hole Hydraulic Lathe Work Holding Fixture

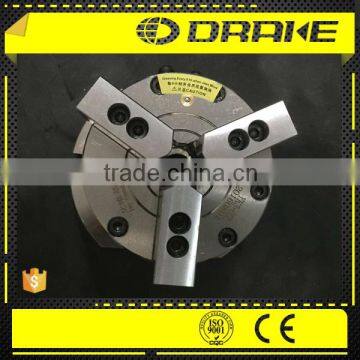

YK3-12L Vertical Through-hole Hydraulic Lathe Work Holding Fixture
- 12628 Set / Sets per Month
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
YK3-10L Vertical Through-hole wood lathe tools Power Chuck for CNC Machining Center
-
QZ3 Front-load Pneumatic Working Holder with 12 inch for CNC Lathe Machining
-
QZ3 Front-load Pneumatic Power Lathe Fixture with 10 inch for CNC Machining Center
-
Two jaw 210mm through-hole Hydraulic lathe chuck
-
12 Inch Diameter Front-load Pneumatic Power Lathe Chuck Wood Lathe Accessories
-
QZ3-10 Front-load Pneumatic Power Lathe Chuck Wood Lathe Tools
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | YK3-12"L | Power | Hydraulic | |
| Number of Jaws | 3 |
Product Description
YK3-12L Vertical Through-hole Hydraulic Lathe Work Holding Fixture
hollow power hydraulic chuckhollow power hydraulic chuckhollow power hydraulic chuckhollow power hydraulic chuck
Technical features:
1. Patent product, vertical type with baseboard.
2. Super thin body, easy retrofit.
3. Accuracy, within 0.03mm.
4. Pneumatic operation Standard.
5. This chuck is applicable for machining center, driller and miller.
6. 2 jaw and 4 jaware available.
7. Rigid and short construction makes the stationary 3 jaw chucks ideal for
operating in machining centers
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | D | D1 | d | L1 | L2 | L3 | H | H1 | h | p |
| YK3-04L" | 115 | 160 | - | 2~15 | 120 | - | 116 | 92 | 20 | 14 |
| YK3-05L" | 135 | 175 | 20 | 2~15 | 140 | - | 120 | 97 | 26 | 14 |
| YK3-06L" | 172 | 218 | 35 | 2~17 | 180 | - | 142 | 109 | 26 | 20 |
| YK3-08L" | 208 | 265 | 40 | 2~17 | 220 | - | 155 | 115 | 26 | 25 |
| YK3-10L" | 252 | 310 | 60 | 2~20 | 260 | - | 157 | 115 | 26 | 30 |
| YK3-12L" | 322 | 400 | 80 | 2~20 | 340 | 150 | 185 | 133 | 30 | 30 |
| YK3-15L" | 400 | 480 | 100 | 2~20 | 430 | 150 | 220 | 148 | 35 | 43 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Jaw Stroke (Diameter) (mm) | Max. static clamping force (kgf) | Max. static holding force (kgf) | Permissible pressure (Mpa) | Clamping range | Holding range | Net Weight (kg) |
| YK3-04L" | 3.2 | 2440 | 1630 | 0.4-1.5 | 3-115 | 15-120 | 8 |
| YK3-05L" | 3.7 | 3060 | 2040 | 0.4-1.5 | 5-130 | 15-140 | 11 |
| YK3-06L" | 4.2 | 5300 | 3460 | 0.4-1.5 | 5-170 | 20-180 | 18 |
| YK3-08L" | 5 | 8360 | 5100 | 0.4-1.5 | 10-210 | 25-230 | 28 |
| YK3-10L" | 6.5 | 11520 | 7140 | 0.4-1.5 | 20-250 | 30-260 | 40 |
| YK3-12L" | 8.5 | 13660 | 9990 | 0.4-1.0 | 30-320 | 40-340 | 75 |
| YK3-15L" | 12 | 19890 | 13260 | 0.4-1.0 | 40-400 | 60-420 | 120 |
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
