Home > Products > Cylinder and other Chuck Parts > High Rational Speed Single Piston Air Operated Clamp Chuck Air Cylinder Supplier's Choice

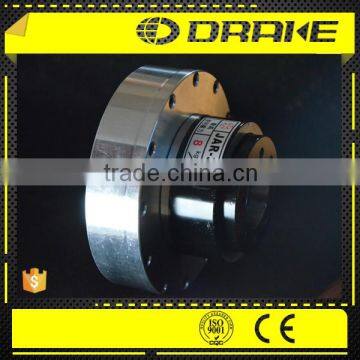

High Rational Speed Single Piston Air Operated Clamp Chuck Air Cylinder Supplier's Choice
US$ 160.53 - 1,205.37
/ Set
1 Set(Min. Order)
- SHANGHAI NINGBO TIANJIN QINDAO DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Speed Single Piston Air Operated Clamp Lathe Chuck Air Cylinder Supplier's Choice
-
Single Piston Air Operated Clamp Chuck Air Cylinder Supplier's Choice
-
Through-hole Pneumatic Cylinder
-
SH150 Closed-center Solid Rotary Hydraulic Cylinder
-
KQ130 Through-hole Pneumatic Cylinder
-
SQ110 Rotary High Speed Single Piston Closed Center Pneumatic Cylinder f
Product Details
| Standard or Nonstandard | Standard | Structure | Rotary Cylinder | |
| Power | Pneumatic | Body Material | Aluminum | |
| Maximum Stroke | 15500mm | Shaft Diameter | 56 | |
| Place of Origin | Jiangsu, China | Model Number | JAR60 | |
| Brand Name | DRAKE |
Product Description
High Rational Speed Single piston air operated clamp chuck air cylinder
Product Description
Parameters
Size Parameters
| Model/Spec | A | B | C | D | E | F | G | H | I |
| JAR32 | 176 | 109 | 90 | 30-52 | 56 | 88 | 56 | 100 | 14 |
| JAR60 | 176 | 118 | 100 | 52-63 | 60 | 88 | 56 | 105 | 14 |
Performance Parameters
| Model/Spec | Piston stroke (mm) | Working pressure (kg/cm²) | Max. pull (kgf) | Max. speed (rpm) | Net weight (kg) |
| JAR32 | 4 | 3-8 | 1530 | 4000 | 6.8 |
| JAR60 | 4 | 3-8 | 1500 | 4000 | 6.6 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
| Learn More |
| Learn More | |
| Learn More | |
| Learn More | |
| Learn More |
Certifications
Flow & Packing
Equipments
Video
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
