SH150 High Speed Standard Closed-center Solid Rotary Hydraulic Cylinder for CNC Vertical Metal Lathe
US$ 386.32 - 736.56
/ Set
1 Set(Min. Order)
- SHANGHAI GUANGZHOU DALIAN NINGBO QINGDAO ETC.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SH100 Standard Closed-center Rotary Hydraulic Cylinder for CNC Vertical Metal Lathe
-
Standard High Speed Closed-center Rotating Hydraulic Cylinder for CNC Vertical Metal Lathe
-
TK Short Type High Speed Rotating Through-hole Safety Device Hydraulic Cylinder for CNC Vertical Metal Lathe
-
TH High Speed Rotating Safety Device Thru-Hole Hydraulic Cylinders for CNC Vertical Metal Lathe
-
Rotary Single Piston Through-hole Pneumatic Cylinder for CNC Steel Wire Bending Machine
-
Rotary High Speed Single Piston Closed Center Pneumatic Cylinder for CNC Steel Wire Bending Machine
Product Details
| Standard or Nonstandard | Standard | Structure | Rotary Cylinder | |
| Power | Hydraulic | Body Material | Aluminum | |
| Maximum Stroke | 30 | Shaft Diameter | 150 | |
| Place of Origin | Jiangsu, China | Model Number | SH 150 hydraulic cylinder | |
| Brand Name | IVY hydraulic power cylinders |

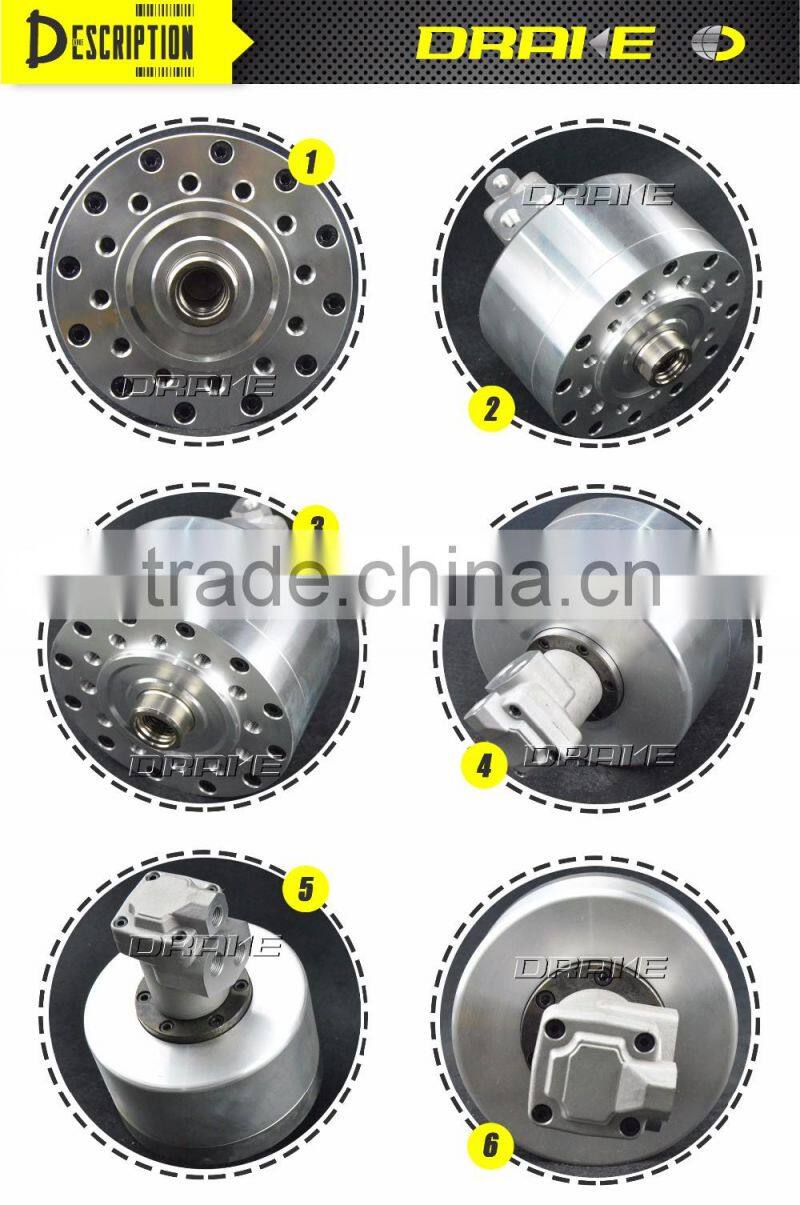

Product Description

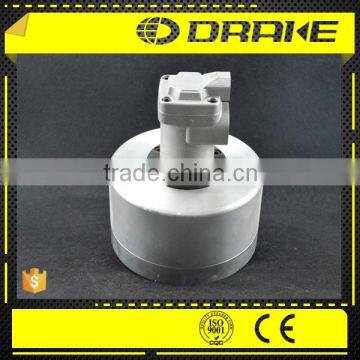

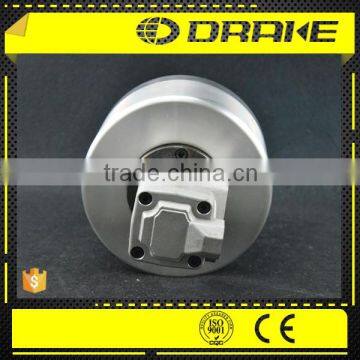

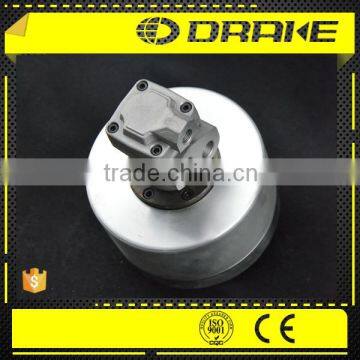

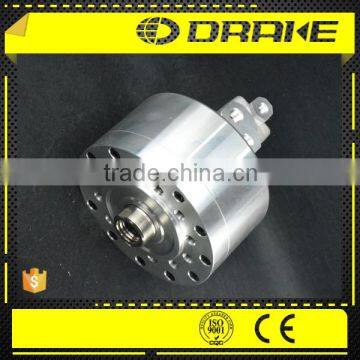

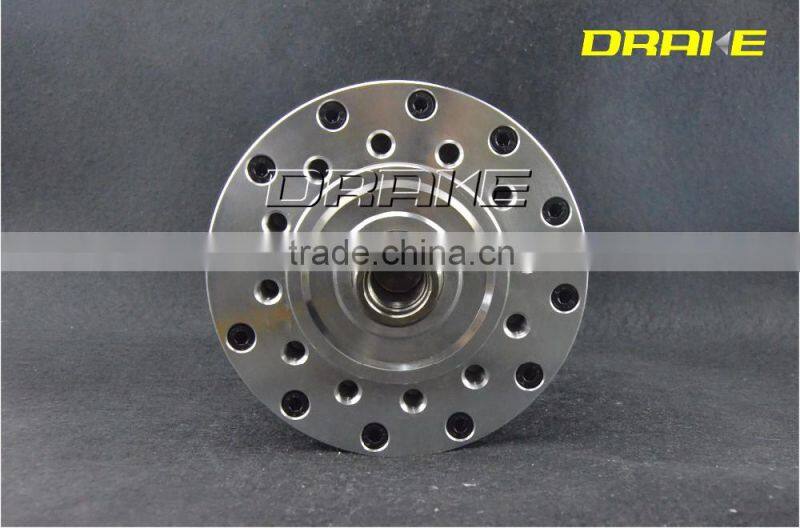

SH150 High speed Standard Closed-center solid rotary Hydraulic cylinder for CNC vertical metal lathe
Product Description
Technical features:
1. The rotary valve and cylinder body, all made of special light alloy, are light-weight.
2. Through unique design, efficebtly increase its utilization.
3. Built-in safety check valves.
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A | B | C | D | E (h7) | F | G (max.) | G (min.) | H | J | M H8 | N | K | L | 2-p |
| SH65 | 65 | 15 | 98 | 80 | 60 | 22 | 45 | 30 | 74 | 175 | - | - | M12×2.0 | 6-M8×16 | PT3/8 |
| SH80 | 80 | 15 | 112 | 90 | 65 | 25 | 45 | 30 | 74 | 175 | - | - | M16×2.0 | 6-M8×16 | PT3/8 |
| SH100 | 100 | 20 | 135 | 100 | 80 | 30 | 45 | 25 | 89 | 190 | - | - | M20×2.5 | 6-M10×20 | PT3/8 |
| SH125 | 125 | 25 | 160 | 130 | 110 | 36 | 50 | 25 | 96 | 197 | - | - | M24×3.0 | 6-M12×20 | PT3/8 |
| SH150 | 150 | 30 | 190 | 130 | 110 | 45 | 55 | 25 | 105 | 206 | 31 | 5 | M30×3.5 | 12-M12×24 | PT3/8 |
| SH200 | 200 | 35 | 245 | 145 | 120 | 55 | 70 | 25 | 130 | 231 | 37 | 5 | M36×4.0 | 12-M16×30 | PT3/8 |
Performance Parameters
| Model/Spec | Piston area(cm²) | Stroke (mm) | Highest turnover nimber min-1 (rpm) | Max. working pressure Mpa (kgf/cm²) | Moment of inertia (kg.m²) | Weight (kg) | |
| Press side | Pull side | ||||||
| SH65 | 31 | 27.9 | 15 | 6000 | 3.5(35) | 0.01 | 2.9 |
| SH80 | 47.7 | 42.8 | 15 | 6000 | 3.5(35) | 0.01 | 3.4 |
| SH100 | 75.4 | 70.5 | 20 | 5500 | 3.5(35) | 0.04 | 4.9 |
| SH125 | 119.6 | 112.5 | 25 | 5500 | 3.5(35) | 0.08 | 6.8 |
| SH150 | 173.6 | 157.7 | 30 | 4000 | 3.5(35) | 0.18 | 11.5 |
| SH200 | 310 | 286.3 | 35 | 4000 | 3.5(35) | 0.38 | 20.4 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
| No. | Name | No. | Name |
| 1 | Lock Valve | 17 | O-Ring |
| 2 | Lock Valve | 18 | O-Ring |
| 3 | Relief Valve | 19 | O-Ring |
| 4 | Cylinder Body | 20 | O-Ring |
| 5 | Piston | 21 | Oil Seal |
| 6 | Rotation Valve | 22 | PVC Plug |
| 7 | Sleeve | 23 | PVC Plug |
| 8 | Guide Pin | 24 | Set Screw |
| 9 | Seelve Cover | 25 | Set Screw |
| 10 | Name Plate | 26 | Snap Ring |
| 11 | Set Screw | 27 | Snap Ring |
| 12 | Bearing | 28 | PT Plug |
| 13 | Bearing | 29 | Fist Head Cap Screw |
| 14 | Wrench Bolt | ||
| 15 | O-Ring | ||
| 16 | O-Ring |
