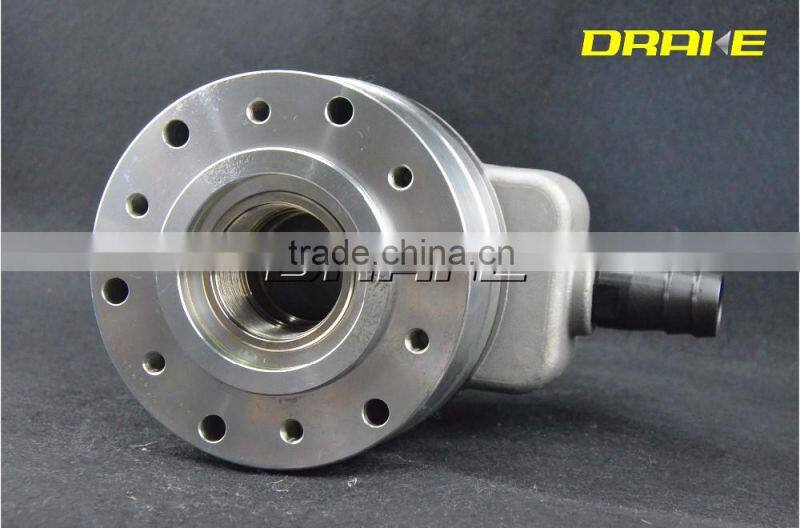

TK646 Short Type High Speed Rotating Through-hole Hydraulic Cylinder
US$ 575.52 - 731.51
/ Set
1 Set(Min. Order)
- SHANGHAI GUANGZHOU DALIAN NINGBO QINGDAO ETC.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Rotary Single Piston Through-hole Pneumatic Cylinder for Turret Type Cnc Lathe Machine
-
Rotary High Speed Single Piston Closed Center Pneumatic Cylinder for Turret Type Cnc Lathe Machine
-
Rotary High Speed Single Piston Through-hole Pneumatic Cylinder for Turret Type Cnc Lathe Machine
-
SH200 Standard Closed-center Solid Rotary Hydraulic Cylinder for Turret Type Cnc Lathe Machine
-
SH150 High Speed Standard Closed-center Solid Rotary Hydraulic Cylinder for Turret Type Cnc Lathe Machine
-
SH100 Standard Closed-center Rotary Hydraulic Cylinder for Turret Type Cnc Lathe Machine
Product Details
| Standard or Nonstandard | Standard | Structure | Rotary Cylinder | |
| Power | Hydraulic | Body Material | Aluminum | |
| Maximum Stroke | 163.5 | Shaft Diameter | 36 | |
| Place of Origin | Jiangsu, China | Model Number | TK646 | |
| Brand Name | DRAKE |

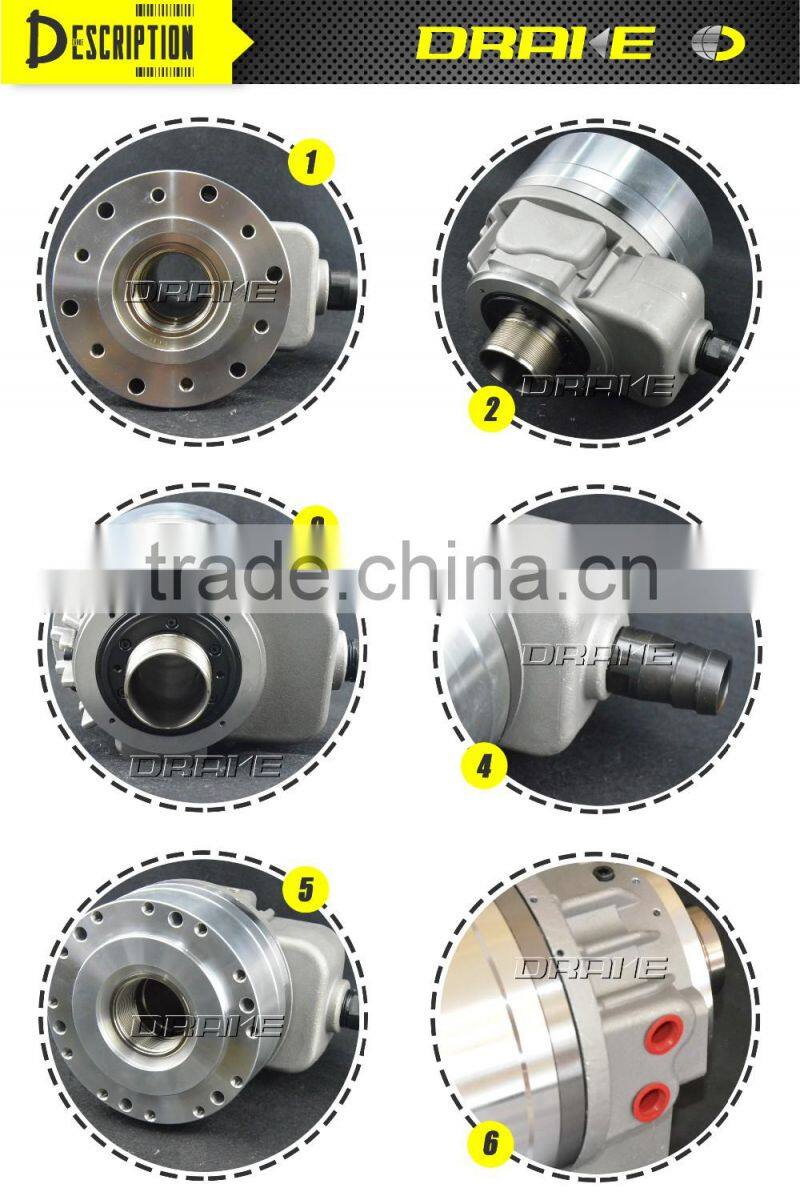

Product Description
Product Description
Technical features:
1. Thru-hole, high speed
2. Super short form, light weight.
3. Built-in safety check valves and pressure relief valve
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A | B | C | D | E (h7) | G1 (max.) | G1 (min.) | G2 (max.) | G2 (min.) | H | J | K | L1 | L2 | M1 | M2 | M3 |
| TK536 | 105 | 142 | 115 | 124 | 100 | 15 | 0 | 27 | 12 | 65 | 94 | 150 | M8*70 | 14 | M42*1.5 | 25 | 15 |
| TK646 | 125 | 165 | 140 | 140 | 120 | 15 | 0 | 28 | 13 | 58 | 96 | 141 | M8*65 | 15 | M55*2 | 25 | 15 |
| TK646(S) | 125 | 165 | 130 | 147 | 100 | 15 | 0 | 28 | 13 | 68 | 86 | 153 | M8*75 | 15 | M55*2 | 30 | 15 |
| TK852 | 150 | 185 | 170 | 165 | 130 | 20 | 0 | 30 | 10 | 73 | 102 | 164 | M8*75 | 12 | M60*2 | 30 | 15 |
| TK1075 | 175 | 215 | 190 | 195 | 160 | 25 | 0 | 39 | 14 | 84 | 131 | 181 | M10*90 | 20 | M85*2 | 35 | 15 |
| Model/Spec | N1 | N2 | O | 01 H8 | 02 H8 | P | Q1 | Q2 | R g7 | T | U | V | W1 | W2 | X1 | X2 | Y1 | Y2 |
| TK536 | M44*1.5 | 28 | PT1/4 | 100 | 38 | 104 | 7 | 34 | 42 | 73 | 98 | 2 | 66 | 106 | 54 | M5*8 | 83 | M5*6 |
| TK646 | M52*1.5 | 24 | PT3/8 | 115 | 50 | 96 | 7 | 36 | 50 | 90 | 116 | 2 | 79 | 119 | 63 | M6*8 | 98 | M5*6 |
| TK646(S) | M52*1.5 | 24 | PT3/8 | 130 | 50 | 108 | 7 | 36 | 50 | 92 | 116 | 2 | 79 | 119 | 63 | M6*8 | 98 | M5*6 |
| TK852 | M58*1.5 | 25 | PT1/2 | 170 | 55 | 113 | 8 | 40 | 56 | 97 | 128 | 2 | 82 | 133 | 72 | M6*8 | 110 | M5*6 |
| TK1075 | M84*2 | 30 | PT1/2 | 190 | 80 | 126 | 10 | 46 | 81 | 125 | 163 | 2 | 98 | 160 | 98 | M6*8 | 155 | M6*8 |
Performance Parameters
| Model/Spec | Piston area(cm²) | Highest turnover nimber min-1 (rpm) | Max. working pressure Mpa (kgf/cm²) | (kg.m²) | Total volume of oil drainage | Weight (kg) | |
| Press side | Pull side | ||||||
| TK536 | 70.7 | 65.8 | 9200 | 4.5(45) | 0.05 | 2.5 | 7.7 |
| TK646 | 99.1 | 88.0 | 8000 | 4.5(45) | 0.06 | 3.0 | 7.5 |
| TK646(S) | 99.1 | 88.0 | 8000 | 4.5(45) | 0.06 | 3.0 | 7.5 |
| TK852 | 135.3 | 125.0 | 6500 | 4.5(45) | 0.11 | 3.9 | 11.8 |
| TK1075 | 179.5 | 163.5 | 5500 | 4.5(45) | 0.24 | 4.2 | 21.5 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
| No. | Name | No. | Name |
| 1 | Body | 17 | O-Ring |
| 2 | Rotation Valve | 18 | O-Ring |
| 3 | Sleeve Body | 19 | O-Ring |
| 4 | Sleeve | 20 | O-Ring |
| 5 | Piston | 21 | O-Ring |
| 6 | Wrench Bolt | 22 | O-Ring |
| 7 | Stopper | 23 | O-Ring |
| 8 | Hose Nipple | 24 | Wrench Bolt |
| 9 | Name Plate | 25 | Set Screw |
| 10 | Lock Valve | 26 | PVC Plug |
| 11 | Lock Valve | 27 | PVC Plug |
| 12 | Splash Plate | 28 | Seal Washer |
| 13 | Bearing | 29 | Wrench Bolt |
| 14 | Wrench Bolt | 30 | PT Plug |
| 15 | O-Ring | 31 | Air Brenther |
| 16 | O-Ring |

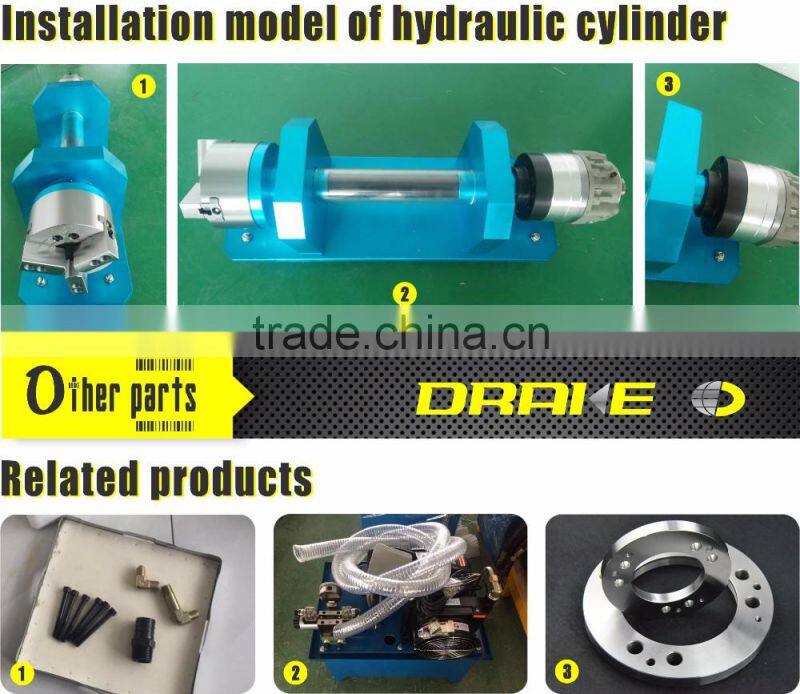

Related Products
The matching products including:
1. Fixing Bolt, Hose Nipple.
2. Hydraulic pump unit.
3. Adaptor plate.
Certifications

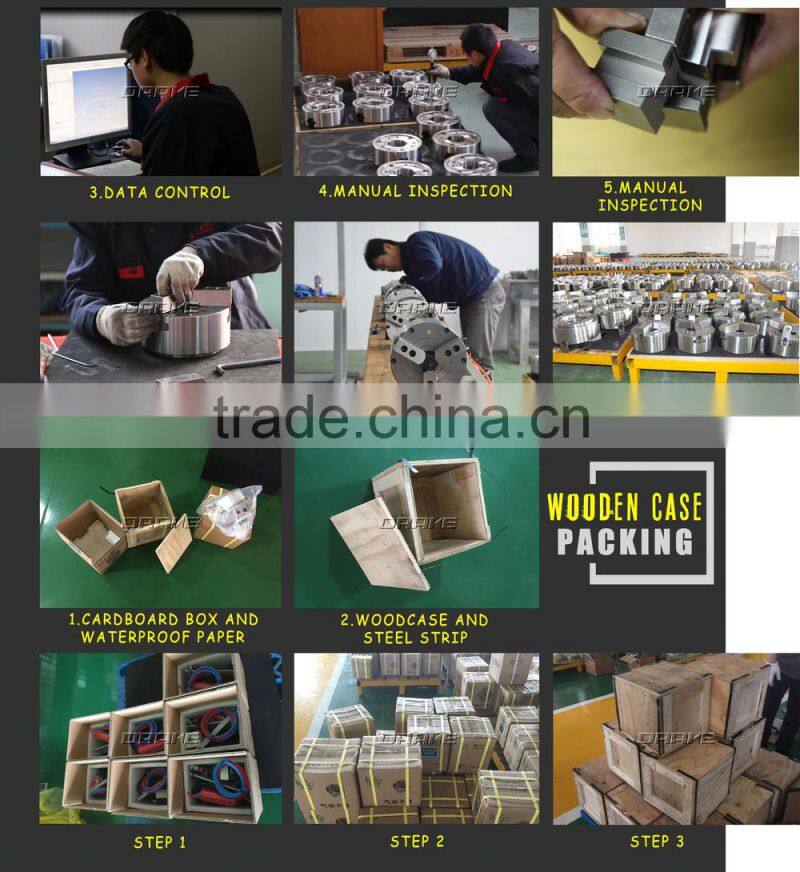

Work Flow & Packing

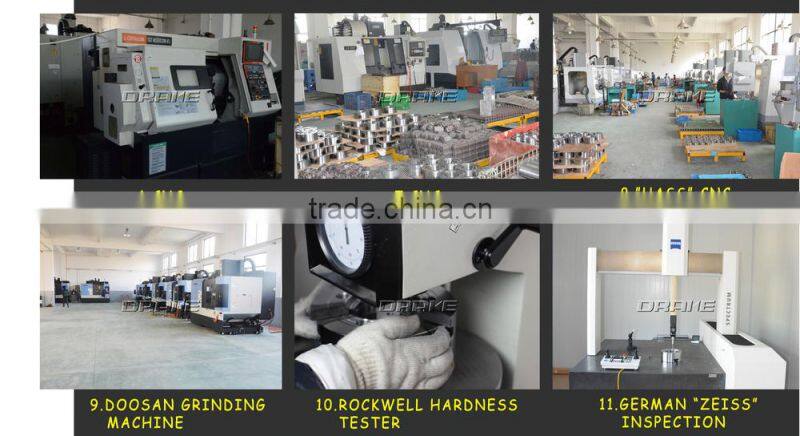

Equipments
Video
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
Contact Us
- Changzhou Drake International Trade Co., Ltd.
- Contact nameJoanna Zhou Chat Now
- Phone0086-519-83856060
- AddressNo.78 Suntang, Qinxin Village, Yoao Guan Town,Wujin District, Changzhou, Jiangsu
