Home > Products > Cylinder and other Chuck Parts > TK Short Type High Speed Rotating Through-hole Safety Device Hydraulic Cylinder for CNC Vertical Metal Lathe

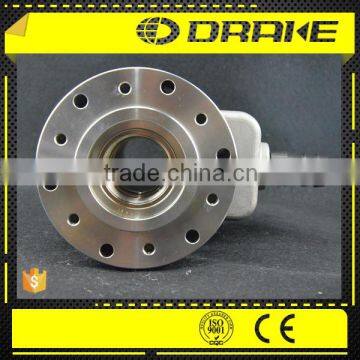

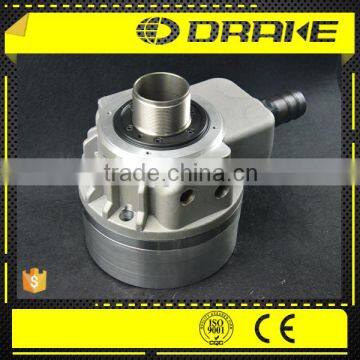

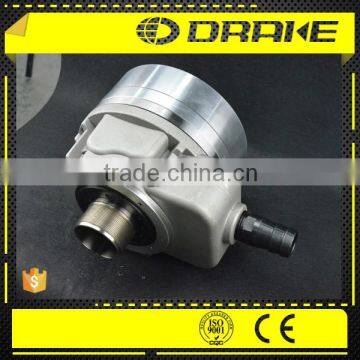

TK Short Type High Speed Rotating Through-hole Safety Device Hydraulic Cylinder for CNC Vertical Metal Lathe
US$ 575.56 - 731.52
/ Set
1 Set(Min. Order)
- SHANGHAI GUANGZHOU DALIAN NINGBO QINGDAO ETC.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
TH High Speed Rotating Safety Device Thru-Hole Hydraulic Cylinders for CNC Vertical Metal Lathe
-
Rotary Single Piston Through-hole Pneumatic Cylinder for CNC Steel Wire Bending Machine
-
Rotary High Speed Single Piston Closed Center Pneumatic Cylinder for CNC Steel Wire Bending Machine
-
Rotary High Speed Single Piston Through-hole Pneumatic Cylinder for CNC Steel Wire Bending Machine
-
SH200 Standard Closed-center Solid Rotary Hydraulic Cylinder for CNC Steel Wire Bending Machine
-
SH150 High Speed Standard Closed-center Solid Rotary Hydraulic Cylinder for CNC Steel Wire Bending Machine
Product Details
| Standard or Nonstandard | Standard | Structure | Rotary Cylinder | |
| Power | Hydraulic | Body Material | Aluminum | |
| Maximum Stroke | 163.5 | Shaft Diameter | 36 | |
| Place of Origin | Jiangsu, China | Model Number | TK646 OIL LATHE CYLINDERS | |
| Brand Name | IVY hydraulic power cylinders |
Product Description
TK Short Type High speed Rotating Through-hole safety device Hydraulic cylinder for CNC vertical metal lathe
Product Description
Technical features:
1. Thru-hole, high speed
2. Super short form, light weight.
3. Built-in safety check valves and pressure relief valve
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A | B | C | D | E (h7) | G1 (max.) | G1 (min.) | G2 (max.) | G2 (min.) | H | J | K | L1 | L2 | M1 | M2 | M3 |
| TK536 | 105 | 142 | 115 | 124 | 100 | 15 | 0 | 27 | 12 | 65 | 94 | 150 | M8*70 | 14 | M42*1.5 | 25 | 15 |
| TK646 | 125 | 165 | 140 | 140 | 120 | 15 | 0 | 28 | 13 | 58 | 96 | 141 | M8*65 | 15 | M55*2 | 25 | 15 |
| TK646(S) | 125 | 165 | 130 | 147 | 100 | 15 | 0 | 28 | 13 | 68 | 86 | 153 | M8*75 | 15 | M55*2 | 30 | 15 |
| TK852 | 150 | 185 | 170 | 165 | 130 | 20 | 0 | 30 | 10 | 73 | 102 | 164 | M8*75 | 12 | M60*2 | 30 | 15 |
| TK1075 | 175 | 215 | 190 | 195 | 160 | 25 | 0 | 39 | 14 | 84 | 131 | 181 | M10*90 | 20 | M85*2 | 35 | 15 |
| Model/Spec | N1 | N2 | O | 01 H8 | 02 H8 | P | Q1 | Q2 | R g7 | T | U | V | W1 | W2 | X1 | X2 | Y1 | Y2 |
| TK536 | M44*1.5 | 28 | PT1/4 | 100 | 38 | 104 | 7 | 34 | 42 | 73 | 98 | 2 | 66 | 106 | 54 | M5*8 | 83 | M5*6 |
| TK646 | M52*1.5 | 24 | PT3/8 | 115 | 50 | 96 | 7 | 36 | 50 | 90 | 116 | 2 | 79 | 119 | 63 | M6*8 | 98 | M5*6 |
| TK646(S) | M52*1.5 | 24 | PT3/8 | 130 | 50 | 108 | 7 | 36 | 50 | 92 | 116 | 2 | 79 | 119 | 63 | M6*8 | 98 | M5*6 |
| TK852 | M58*1.5 | 25 | PT1/2 | 170 | 55 | 113 | 8 | 40 | 56 | 97 | 128 | 2 | 82 | 133 | 72 | M6*8 | 110 | M5*6 |
| TK1075 | M84*2 | 30 | PT1/2 | 190 | 80 | 126 | 10 | 46 | 81 | 125 | 163 | 2 | 98 | 160 | 98 | M6*8 | 155 | M6*8 |
Performance Parameters
| Model/Spec | Piston area(cm²) | Highest turnover nimber min-1 (rpm) | Max. working pressure Mpa (kgf/cm²) | (kg.m²) | Total volume of oil drainage | Weight (kg) | |
| Press side | Pull side | ||||||
| TK536 | 70.7 | 65.8 | 9200 | 4.5(45) | 0.05 | 2.5 | 7.7 |
| TK646 | 99.1 | 88.0 | 8000 | 4.5(45) | 0.06 | 3.0 | 7.5 |
| TK646(S) | 99.1 | 88.0 | 8000 | 4.5(45) | 0.06 | 3.0 | 7.5 |
| TK852 | 135.3 | 125.0 | 6500 | 4.5(45) | 0.11 | 3.9 | 11.8 |
| TK1075 | 179.5 | 163.5 | 5500 | 4.5(45) | 0.24 | 4.2 | 21.5 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
| No. | Name | No. | Name |
| 1 | Body | 17 | O-Ring |
| 2 | Rotation Valve | 18 | O-Ring |
| 3 | Sleeve Body | 19 | O-Ring |
| 4 | Sleeve | 20 | O-Ring |
| 5 | Piston | 21 | O-Ring |
| 6 | Wrench Bolt | 22 | O-Ring |
| 7 | Stopper | 23 | O-Ring |
| 8 | Hose Nipple | 24 | Wrench Bolt |
| 9 | Name Plate | 25 | Set Screw |
| 10 | Lock Valve | 26 | PVC Plug |
| 11 | Lock Valve | 27 | PVC Plug |
| 12 | Splash Plate | 28 | Seal Washer |
| 13 | Bearing | 29 | Wrench Bolt |
| 14 | Wrench Bolt | 30 | PT Plug |
| 15 | O-Ring | 31 | Air Brenther |
| 16 | O-Ring |
Related Products
The matching products including:
1. Fixing Bolt, Hose Nipple.
2. Hydraulic pump unit.
3. Adaptor plate.
Certifications
Work Flow & Packing
Equipments
Video
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
