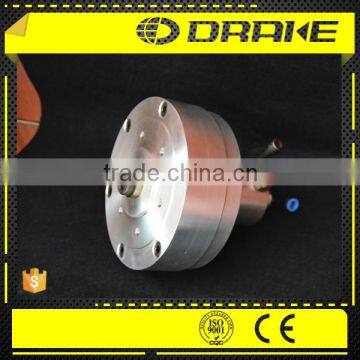

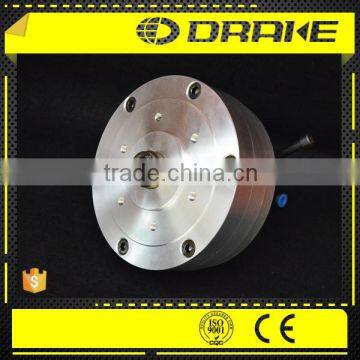

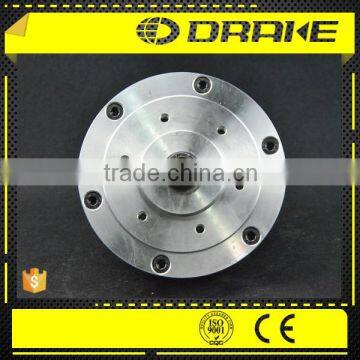

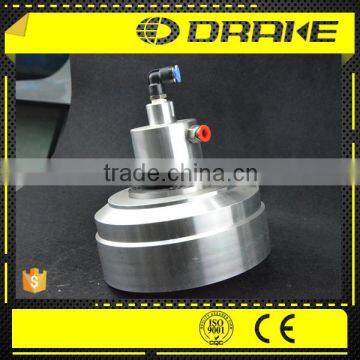

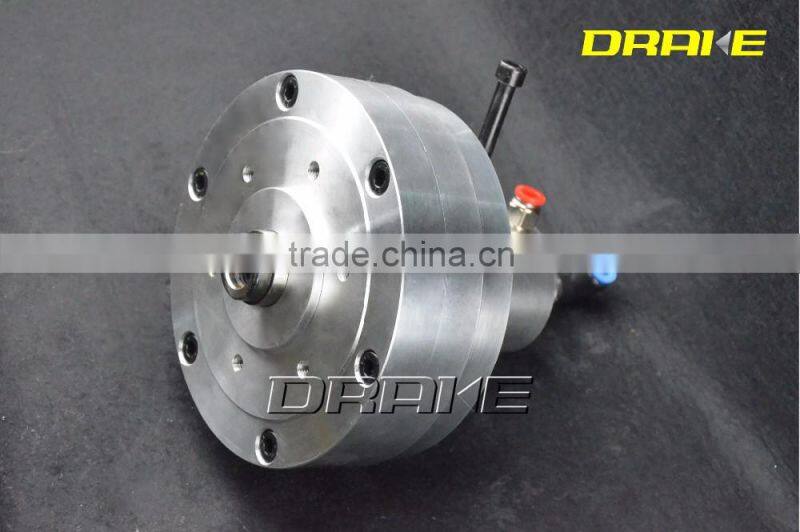

Rotary High Speed Single Piston Closed Center Pneumatic Cylinder for CNC Vertical Metal Lathe

Rotary high speed single piston closed center pneumatic cylinder for CNC vertical metal lathe

Technical features:

1. Patented product, a rear pulling chuck and collet power source.
2. The connection method of the rotary cylinder is short cylinder form, without changes

    in the machine tool structure, and a flange matching with the connecting convex (D1)

    can be installed at the tail of the machine tool.

3. The product is made of aluminum alloy, with light weight, high speed, fast operation

    and no leakage; it is an ideal power source of rear pulling power chuck and collet,

    and can also be used as the power source of other devices.

 There are three questions to answer to aid the correct choice of power chuck:

1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

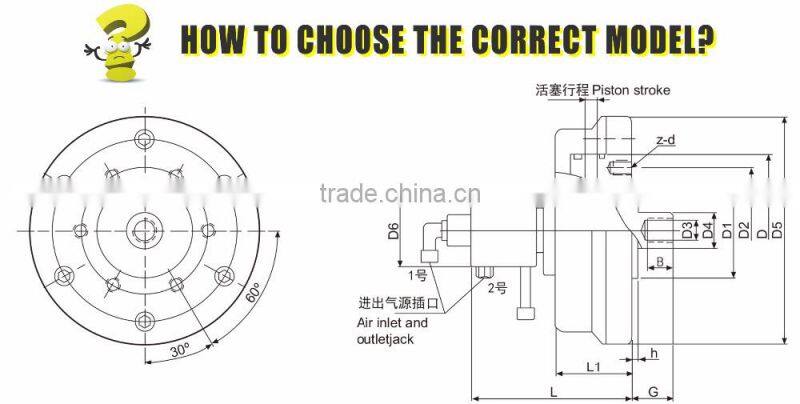

Size Parameters

Performance Parameters

It is recommended to grease chucks at least twice a day in order to maximize longevity

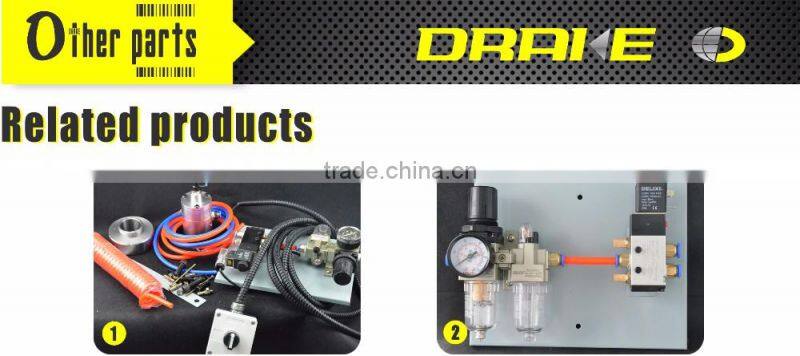

1. Air hose, manual-switch, Hex. socket head bolt, axle sleeve.

2. Oil-water separator, manual solenoid valve.
