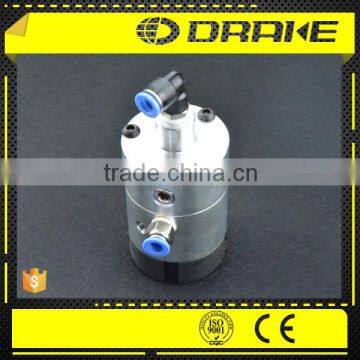

Aluminum Alloy KQ130 Rotary Single Piston Through-hole Pneumatic Cylinder

Aluminum Alloy KQ130 Rotary Single Piston Through-hole Pneumatic Cylinder

Technical features:

1. Patented product, a rear pulling chuck and collet power source.
2. The connection of the rotary cylinder with a short cylindrical form of connection,

    without changes to the machine tool structure, installation and connection of

    the (D1) consistent with the flange can be just the machine tail.

3. The product is made of aluminum alloy, with light weight, high speed, do not hold the

    shaft, move fast, do not leak, the center through-hole structure can be achieved

    continuous feed and processing of the long axis of the workpiece, pull all

    through-hole power chuck and through-hole collet ideal power source, but also with

    other devices of the power source.

 There are three questions to answer to aid the correct choice of power chuck:

1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

Size Parameters

Performance Parameters

It is recommended to grease chucks at least twice a day in order to maximize longevity

1. Air hose, manual-switch, Hex. socket head bolt, axle sleeve.

2. Oil-water separator, manual solenoid valve.
