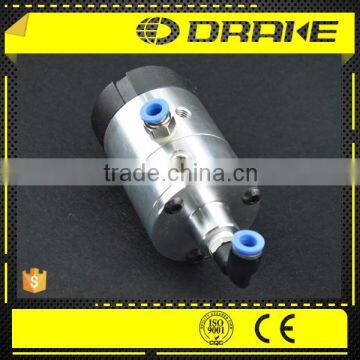

KQ130 Rotary single piston through-hole pneumatic cylinder Supplier's Choice
- 15085 Set / Sets per Month
- SHANGHAI GUANGZHOU DALIAN NINGBO QINGDAO ETC.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Aluminum Alloy KQ130 Rotary Single Piston Through-hole Pneumatic Cylinder
-
SH150 High Speed Closed-center Solid Rotating Hydraulic Oil Cylinder
-
SH150 Closed-center solid rotary Hydraulic cylinder High Speed
-
High Speed Alloy Steel Rotary high speed single piston through-hole pneumatic cylinder
Supplier's Choice
-
Rotary high speed single piston through-hole pneumatic cylinder for cnc lathe
-
SQ110 Rotary Cylinder High Speed Single Piston Closed Center Pneumatic Chuck
Product Details
| Standard or Nonstandard | Standard | Structure | Rotary Cylinder | |
| Power | Pneumatic | Body Material | Aluminum | |
| Maximum Stroke | 4000 rmp | Shaft Diameter | 80 | |
| Place of Origin | Jiangsu, China | Model Number | KQ130T | |
| Brand Name | DRAKE |
Product Description
KQ130 Rotary single piston through-hole pneumatic cylinder
Technical features:
1. Patented product, a rear pulling chuck and collet power source.
2. The connection of the rotary cylinder with a short cylindrical form of connection,
without changes to the machine tool structure, installation and connection of
the (D1) consistent with the flange can be just the machine tail.
3. The product is made of aluminum alloy, with light weight, high speed, do not hold the
shaft, move fast, do not leak, the center through-hole structure can be achieved
continuous feed and processing of the long axis of the workpiece, pull all
through-hole power chuck and through-hole collet ideal power source, but also with
other devices of the power source.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | D1 | D2 | D3 | D4 | D5 | M1 | M2 | L | L1 | B | h |
| KQ130T | 80 | 110 | 158 | 140 | 120 | M33×1.5 | 6-M8 | 30 | 30 | 15 | 5 |
| KQ150T | 100 | 130 | 180 | 158 | 138 | M42×1.5 | 6-M8 | 30 | 30 | 15 | 5 |
| KQ175T | 120 | 150 | 208 | 178 | 149 | M50×2.0 | 6-M10 | 35 | 35 | 15 | 5 |
| KQ200T | 130 | 170 | 240 | 195 | 158 | M60×2.0 | 6-M10 | 35 | 35 | 15 | 5 |
Performance Parameters
| Model/Spec | Piston stroke | Max. aperture of draw bar (diameter) | Max. push-pull force kgf(KN) | Allowable pressure (Mpa) | Limit speed (r/min) | Weight (kg) |
| KQ130T | 12 | 26 | 591 | 0.4-0.8 | 4000 | 8.8 |
| KQ150T | 15 | 34 | 754 | 0.4-0.8 | 3500 | 11.6 |
| KQ175T | 15 | 42 | 1224 | 0.4-0.8 | 3000 | 14.5 |
| KQ200T | 18 | 52 | 1683 | 0.4-0.8 | 2500 | 18 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
1. Air hose, manual-switch, Hex. socket head bolt, axle sleeve.
2. Oil-water separator, manual solenoid valve.
