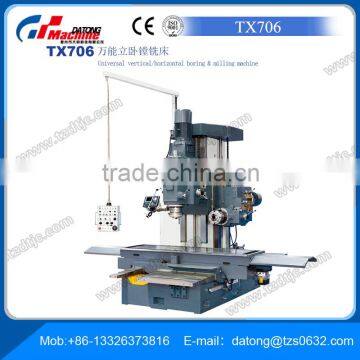

TX706 Universal Vertical/Horizontal Boring and Milling Machine
- Qingdao Tianjin Shanghai
- T/T
You May Like
-
Sale Factory TX68 Boring Machine(horizontal boring and milling machine)(horizontal boring machine)
-
Sale Factory TXP611 Boring Machine(horizontal boring and milling machine)(horizontal boring machine)
-
Drill Press / Milling Machine - KBF50 Cutter head with variable angle, plus large travel distances
-
Drill Press / Milling Machine - Mark Super S Cutter head with variable angle, plus large travel distances
-
Hot sale ZAY7040V Mini Drilling and Milling Machine
-
Hot sale ZAY7045V Mini Drilling and Milling Machine for sale
Product Details
| Condition | New | CNC or Not | Normal | |
| Production Capacity | High | Place of Origin | Shandong, China | |
| Brand Name | DATONG | Model Number | TX706 | |
| Voltage | 380V or others | Power(W) | 11kW | |
| Dimension(L*W*H) | 4100*3700*4250mm | Weight | 17000kgs | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Universal vertical horizontal milling boring machine TX706
Table size(W*L) mm | 650×2400 |
Longitudinal travel (X) mm | 1630 |
Cross travel (Y) mm | 550 |
Vertical travel of Horizontal spindle mm | 800 |
Vertical travel of vertical spindle mm | 800 |
Min. distance from horizontal spindle axis to table mm | 20 |
Width and NO. of T slot | 22×5 |
Spindle taper | V :ISO50 H:ISO50 |
Spindle quill travel mm | V:190, H:190 |
Spindle speed range r/min | V:19-860, H: 19-860 |
Spindle speed step | V: 12, H: 12 |
Feed speed range of Longitudinal and Cross mm/min | 20-2200 |
Vertical feed speed range mm/min | stepless |
Rapid feed speed for Longitudinal and Cross mm/min | 2200 |
Vertical rapid feed speed mm/min | V:1800, H:1800 |
Quill auto-feed speed step | V: 6, H:6 |
Quill auto-feed speed range mm/r | V:0.05-0.4,H:0.05-0.4 |
Spindle motor power kW | V: 11, H: 11 |
Feed motor power kW | 4.4 |
Max. load of table kg | 3000 |
Overall size (L×W×H)mm | 4100×3700×4250 |
Net weight kg | 17000 |
Draw bar
ISO50 milling chuck
ISO50 milling arbor
7:24 middle sleeve
Foundation bolt
Inner hexagonal spanner
Wrench
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
