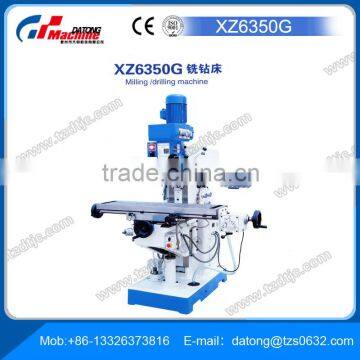

Supply Milling Drilling Machine XZ6350G
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Vertical Drilling And Milling Machine ZX30 for Sale
-
ZAY7040FG Mini Drilling Milling Machine
-
Vertical Drilling And Milling Machine ZX-16 for Sale
-
ZAY7032A/1 Mini Drilling Milling Machine For Sale
-
Milling And Drilling Machine XZ7550C
-
Universal Milling And Drilling Machine ZX50DA Mini Drilling And Milling Machine
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | XZ6350G | |
Type | Universal | CNC or Not | Normal | |
Voltage | 220V | Power(W) | 2.2kw | |
Dimension(L*W*H) | 152X1285X215cm | Weight | 1350kg | |
Certification | CE ISO9001 | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feature:
1.X automatic feed
2.headstock swivels +/- 45
3.spindle movable up and down
4.DRO is standard
5.hardened and ground surface
Specifications:
Model | XZ6350G |
Table size | 1120X260 |
T slot no. /width/distance | 3/14/50 |
Max. load of Table | 250 |
machining range : | |
table Longitudinal travel(manual/auto) | 600 |
table Cross travel (manual/auto) | 270 |
table Vertical travel(manual/auto) | 380 |
Spindle taper | ISO40 |
spindle speed /step -- Vertical | 115-1750/8steps |
--Horizontal | 38-1310/12steps |
Max.drilling dia. | 30 |
Max.end milling width | 100 |
Max. vertical milling Dia. | 25 |
Max.tapping dia. | 16 |
quill travel | 120 |
swivel angle of headstock | ±45º |
vertical spindle axis to column surface | 160-660 |
vertical spindle nose to table surface | 100-430 |
horizontal spindle axis to table surface | 40-320 |
horizontal spindle axis to arm bottom | 175 |
ram travel | 500 |
Longitudinal/cross feed | 24-720/8steps |
Longitudinal/cross rapid speed | 720(X) |
main motor | 0.85/1.5(V), 2.2(H) |
feed motor | 0.37(X) |
coolant motor | 0.04 |
package dimension | 160X152X222 1pc/case |
220X152X222 2pcs/case | |
overall dimension (CM) | 152X1285X215 |
N/W,G/W(kg) | 1350/1500 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
