Drilling/ Milling Machine ZX5150
- qingdao.tianjin.shanghai
- T/T Credit Card
You May Like
-
Universal Vertical Knee-Type Milling and Drilling Machine X6332B
-
Universal Vertical Knee-Type Milling and Drilling Machine ZX6332A
-
Universal Vertical Knee-Type Milling and Drilling Machine ZX6350Z
-
Universal Vertical Knee-Type Milling and Drilling Machine ZX6350ZA
-
Universal Milling and Drilling Machine ZX40 Mini Drilling and Milling Machine
-
Universal Milling and Drilling Machine ZX-40 Mini Drilling and Milling Machine
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | datong | Model Number | ZX5150 | |
Type | Vertical | CNC or Not | Normal | |
Voltage | 380V | Power(W) | 1.5/2.4kw | |
Dimension(L*W*H) | 1730X1730X2300mm | Weight | 1750kg | |
Certification | CE ISO9001 | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

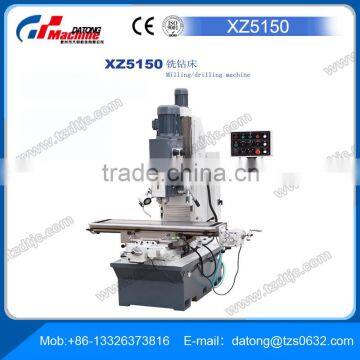

Drilling/ Milling Machine ZX5150
Feature:
1.The machine can do vertical horizontal milling.
2. three axes are automatical feed.
3.It’s with rectangular guideways with high stability
4.The machine is equipped with automatic lubrication system.
5.The machine is bed type milling.
Specifications:
Model | Unit | ZX5150 |
Max.vertical milling dia. | mm | 32 |
Max end mill width | mm | 125 |
Max.drilling dia. | mm | 50 |
Spindle taper | 7:24 ISO40 | |
Spindle travel Spindle seeds range | mm r/min | 180 94-2256(16 steps) |
Automatic Feed Series sleeve | mm/r | 0.1/0.15/0.3(3 steps) |
Distance spindle to table | mm | 100-600 |
Distance spindle to column | mm | 400 |
Swivel angle of headstock | ±45° | |
Up/down speeds of headstock | mm/min | 2000 |
Table size | mm | 1220×360 |
Table travel | mm | 600×360 |
Table feeds range | mm/min | 18-555(8steps)(max.810) |
T of table(no./width/distance) | mm | 3/14/95 |
Main motor | KW | 1.5/2.4 |
Motor of table power feed | W | 370 |
Up/down motor of headstock | W | 550 |
Coolant pump motor | W | 40 |
N.W./G.W. | kg | 1760/1960 |
Overall dimension | mm | 1730×1730×2300 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
