Universal Milling and Drilling Machine ZX7550cW Mini Drilling and Milling Machine
- qingdao.tianjin.shanghai
- T/T Credit Card
You May Like
-
Universal Milling and Drilling Machine ZX7550C Mini Drilling and Milling Machine
-
Universal Milling and Drilling Machine ZX7550 Mini Drilling and Milling Machine
-
Universal Milling and Drilling Machine ZX50A Mini Drilling and Milling Machine
-
Universal Milling and Drilling Machine ZX50-FC Mini Drilling and Milling Machine
-
Universal Milling and Drilling Machine ZX-50CA Mini Drilling and Milling Machine
-
Universal Milling and Drilling Machine ZX50CA Mini Drilling and Milling Machine
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | ZX7550CW | |
Type | Vertical | CNC or Not | Normal | |
Voltage | 380V | Power(W) | 1500 | |
Dimension(L*W*H) | 1340x1200 x2360mm | Weight | 950/1100kg | |
Certification | CE ISO9001 | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

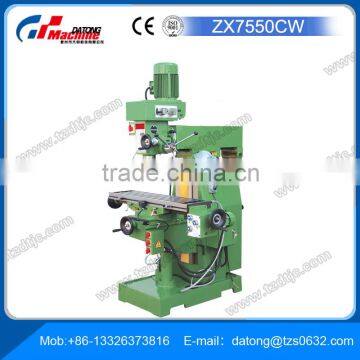

Milling and Drilling Machine ZX7550CW
Feature:
ZX7550CW KNEE-TYPE MILLING AND DRILLING MACHINE is a multifunction drilling and milling machine,bed rigidity,movement stability,high accuracy.
Guide by quenching with good wear ability.Vertical milling , horizontal milling adopts gear drive, transmission of large torque.Longitudinal can be moved with machinery power feeder,reduce labor intensity and improve the machining accuracy and surface finish.
Guide by quenching with good wear ability.Milling head mounted on the front sliding arm,it can move back and forth, not only in the vertical plane of rotation about 45 degrees, but also turn 360 degrees in the bed with a good universal nature of the processing.
If installing appropriate attachments,this machine has many processing function,such as milling,drilling,boring,plane abrasion,etc.operation expediently,performance reliably,applying to metal finishing and maintain of kinds of companys,especially tools,moulds,fastenerprocessing.
Specifications:
Model | Unit |
ZX7550CW
|
Workbench size | mm | 900×250 |
Table travel | mm | 500×240 |
vertical travel | mm | 380 |
vertical milling capacity | mm | 30 |
Face milling capacity | mm | 120 |
Drilling capacity | mm | 50 |
Longitudinal feeds range | mm/min | 24-720 |
Vertical milling spindle travel | mm | 150 |
Spindle nose to table surface | mm | 0-380 |
Travel of movable arm | mm | 300 |
Vertical milling spindle taper | -- | MT4 |
Horizontal milling spindle taper | -- | MT4 |
Horizontal milling spindle speeds | r/min | 120-1520(6step)115-1750(8step) |
Vertical milling motor | kw | 1.5/0.85 |
Main motor | kw | 1.5 |
Overall dimensions | mm | 1340×1200×2360 |
Net weight | kg | 950 |
ZX7550CW Milling Machine Standard Packing List
Standard accessories:
Drill chuck , Mill chuck , Reduction sleeve , Maching vice , Wrench , Inner-hexagonal spanner ,Camlock , Wedge shifter , Spindle arbor(only M.T.4) , Horizontal milling bilt , Operation manual , Ouality certificate.
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
