Product Details
Condition | New | CNC or Not | Normal | |
Drilling Speed | 50Hz:75-1600rpm 60Hz:90-1970rpm | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | ZX45 | |
Voltage | 220V | Power(W) | 1.1kw | |
Dimension(L*W*H) | 850*760*1150mm | Weight | 300kg/350kg | |
Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

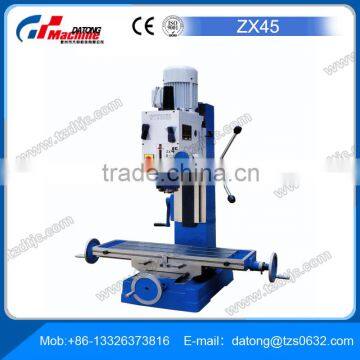

Vertical Drilling and Milling Machine ZX45
Features:
1.Drilling,milling,tapping,boring,reaming
2.Headstock tilts 180 º
3.Heavy-duty tapered roller bearing spindle
4.Adjustable gibs on table
5.Micro feed precision
6.Worktable power feed(option)
7.Positive spindle lock
8.Geared drive,lower noise
9.Accurate position,strong rigidity,strong cutting power
10.Milling head up and down by power(option)
11.Wide and big table
Specification:
Model | ZX45 | |
Max .Drilling capacity | 31.5mm(MT3) 40mm(MT4) | |
Face mill capacity | 80mm | |
End mill capacity | 32mm | |
Working table size (standard): | 800×240mm | |
Working table travel (standard): | 565×230mm | |
Spindle stroke | 120mm | |
Head tilt left right | 90 º | |
Max distance from spindle face to table | 470mm | |
Spindle taper | MT3 or MT4 or R8 | |
Spindle speed range | 50HZ:75-1600rpm 60HZ:90-1970rpm | |
Motor | 1.1kw1450rpm | |
N.W/G.W | 300/350kg | |
Packing dimension | 850×760×1150mm |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
