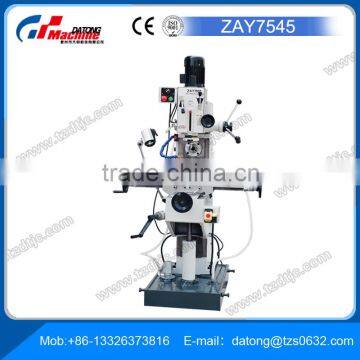

Hot sale ZAY7545 Mini Drilling and Milling Machine with certificate
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Universal Vertical Knee-Type Milling and Drilling Machine ZX6332A-1
-
Universal Vertical Knee-Type Milling and Drilling Machine XZ6332A-1
-
Universal Vertical Knee-Type Milling and Drilling Machine X6332A-1
-
Universal Vertical Knee-Type Milling and Drilling Machine X6332A
-
Vertical CNC Drilling and Milling machine ZX1K
-
Vertical CNC Drilling and Milling machine X8
Product Details
Condition | New | CNC or Not | Normal | |
Drilling Speed | 60HZ (4 poles) 95-1500 /45-1540 (r/min) | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | ZAY7545 | |
Voltage | Customized | Power(W) | 1.5kw | |
Dimension(L*W*H) | 1020x1350x1850mm | Weight | 915/1015kg | |
Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZAY7545 Mini Drilling and Milling Machine for sale
Features:
1.Milling drilling tapping boring and reaming
2.Head swivels ±90° verticaly
3.Adjustable gibs on table precision.
4.Micro feed precision
5.Strong rigidity powerful cutting and precise positioning.
6.Variable speed
Specification:
MODEL | ZAY7532 | ZAY7540 | ZAY7545 | ZAY7550 |
Max.drilling capacity | 32mm | 40mm | 45mm | 50mm |
Max.milling capacity (end / face) | 25/100mm | 32/100mm | 32/100mm | 32/100mm |
Swivel angle of headstock(perpendicular) | ±90° | ±90° | ±90° | ±90° |
spindle taper(end/face) | M.T.3 M.T.4 | M.T.4 | M.T.4 | M.T.4 |
Distance from spindle nose to worktable surface | 80-480mm | 80-480mm | 80-480mm | 80-480mm |
spindle travel | 130mm | 130mm | 130mm | 130mm |
Beam travel | 500mm | 500mm | 500mm | 500mm |
step of spindle speed(end/face) | 612 | 612 | 612 | 612 |
range of spindle speed(end/face) 50Hz | 80-1250 /38-1280 (r/min) | 80-1250 /38-1280 (r/min) | 80-1250 /38-1280 (r/min) | 80-1250 /38-1280 (r/min) |
60Hz (4 Poles) | 95-1500 /45-1540 (r/min) | 95-1500 /45-1540 (r/min) | 95-1500 /45-1540 (r/min) | 95-1500 /45-1540 (r/min) |
Worktable size | 800×240mm | 800×240mm | 800×240mm | 1000×240mm |
Forward and afterward travel of worktable | 300mm | 300mm | 300mm | 300mm |
Left and right travel of worktable | 585mm | 585mm | 585mm | 785mm |
Vertical travel of worktable | 400mm | 400mm | 400mm | 400mm |
Min.distance from spindle axis to column | 290mm | 290mm | 290mm | 290mm |
Power(end/face) | 0.75KW(1HP) /1.5KW | 1.1KW(1.5HP) /1.5KW | 1.5KW(2HP) /1.5KW | 1.5KW(2HP) /1.5KW |
Voltage/Frequency | As customer's requirement | As customer's requirement | As customer's requirement | As customer's requirement |
Cooling pump power | 0.04KW | 0.04KW | 0.04KW | 0.04KW |
Net weight/Gross weight | 910kg/1010kg | 913kg/1013kg | 915kg/1015kg | 930kg/1030kg |
Packing size | 1020×1350 ×1850mm | 1020×1350 ×1850mm | 1020×1350 ×1850mm | 1220×1350 ×1850mm |
Loading amount | 8pcs/20' container | 8pcs/20' container | 8pcs/20' container | 4pcs/20' container |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
