ZX-50DA Mini Drilling Milling Machine
- Qingdao Tianjin ShZX50DA.jpganghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ZAY7040V/1 mini drilling milling machine for sale
-
Vertical Drilling and Milling Machine ZX7045 for sale
-
Vertical Drilling and Milling Machine ZX40 for sale
-
Vertical Drilling and Milling Machine ZX45 for sale Quality Choice
-
Vertical Drilling and Milling Machine ZX40H Z5030 for sale
-
Vertical Drilling and Milling Machine Z5030 for sale
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | ZX-50DA | |
Type | Vertical | CNC or Not | Normal | |
Power(W) | 1.5/0.85KW | Dimension(L*W*H) | 1600*1100*2040mm | |
Weight | 880kg | Certification | ISO9001 CE | |
Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

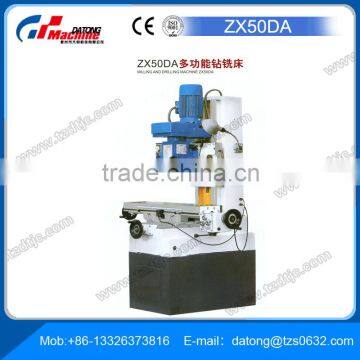

Milling and Drilling Machine ZX-50DA
Feature:
1.Automatic feeder is at extra cost
2.Belt driving type
3.Drilling Milling head rotary angle ±70°
4. Worktable travel can be modified into 600x400mm from 400x250mm
Specifications:
Model |
ZX-50DA
|
vertical milling capacity | 30mm |
face milling capacity | 120mm |
drilling capacity | 50mm |
boring capacity | 120mm |
taping capacity | 16mm |
work table | 1000*250mm |
longitudinal travel | 500mm |
cross travel | 330mm |
spindle travel | 150mm |
spindle nose to table surface | 0-570mm |
spindle center to column | 320mm |
spindle taper | MT4 |
spindle speeds | 230-1800mm |
main motor | 1.5/0.85KW |
overall dimensions | 1600*1100*2040mm |
net weight | 880kg |
ZX-50DA Milling Machine Standard Packing List
Standard Accessories | Optional Accessories | ||
Drawbar | DRO | ||
Adapter | milling clamp | ||
double (end) wrench | cooling pump | ||
Drilling chuck Φ1~Φ13 | quick-change drill chucks | ||
Arbor | Quick change milling chucks | ||
T slot bolt |
| ||
Tilted wedge |
| ||
Oil gun |
| ||
face milling cutter |
| ||
Hexagonal wrenches |
| ||
stand +oil pan |
| ||
flat nose pliers |
| ||
milling collet | |
* You can also choose optional accessories, please contact our sales for details.
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
