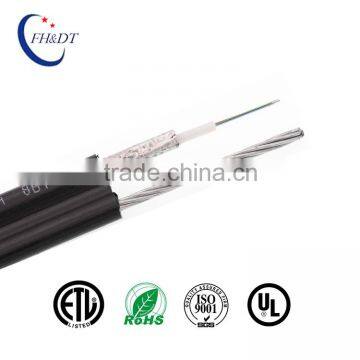

Outdoor GYXTC8A Aerial Fiber Optic Cable

This product can be used as outdoor transmission lines in core network (for example, long haul and relay lines between local telecommunication centers). It can also be used as outdoor distribution lines or feeder in access network.

Cable Design

• Ø Single mode fibres(9/125um)
• Ø Fibers in central loose tube
• Ø Filling compound in central loose tube
• Ø Aluminum tape
• Ø Stranded galvanized steel member
• Ø Black PE outer sheath

Application Circumstances

Recommended:Self-support Aerial

Optical characteristic of optical fiber cable

1. Optical characteristic of multimode fiber

Fiber color code

Mechanical and environment characteristic test methods

1. 1. Tensile performance

Test method:IEC 794-1-E1

Additional Attenuation< 0.15dB@1310 & 1550 nm

1. 2. Crush

Test method:IEC 794-1-E3

Short-term(Installation):1000N/100mm

1. 3. The allowable bending radius of cable

Installation:20 times to the of outer diameter of cable

Working:10 times to the of outer diameter of cable

1. 4. Environment temperature requirement

Temperature range:-40℃~+60℃

Additional Attenuation≤0.05dB/km

1. 5. Drum Label

Manufactures name

Date of manufacture

Drum number

Purchase order number

1. 6. Cable Delivery Length

The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0~+20m. If special requests are made in the contract, the supplied cable length should conform to it.
