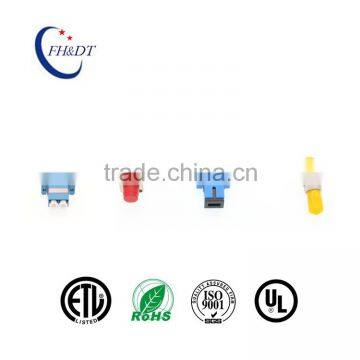

Factory Supply High Quality FC SC ST LC MTRJ MU Optical Fiber Adapter
- ShangHai/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SC/FC/ST/LC/MU/E2000/MTRJ Fiber Optic Adapter , Optical Connector,5db-20db Fiber Optic Attenuator Factory
-
10Gb Corning Fiber Optic Cable, Singlemode Multimode for Cabling System
-
GYTS Stranded Loose Tube Fiber Optical Cable for Outdoor Application
-
Central Loose Tube Optical Cable GYDXTW Single Mode
-
Bow-type Drop Cable/ 1/2/4/6/8/12 Fiber/ Optical Cable FTTH Access Quality Choice
-
Fiber Optic Adapter Single Mode Fiber Optic Adapter
Product Details
| Place of Origin | Sichuan, China | Brand Name | FH&DT | |
| Model Number | FC SC ST LC |
Product Description
Specifications
Fast delivery time
Competitive price
Low insertion loss
Low Insertion Loss
High Return Loss
Factory Supply High Quality FC SC ST LC MTRJ MU Optical Fiber Adapter
Features:
1 Low insertion loss
2 Good exchangeability and repeatability
3 Zirconia or phosphor-bronze sleeve
4 Simplex or duplex
5 Flange mount style
Applications
1 Telecommunication
2 Computer networks
3 CATV networks
4 Active device termination
5 Instrumentation
Fiber Optical Adapter Technical Standard:
| Insertion Loss | <0.2dB |
| Durability(500mating) | 0.2dB Max increase |
| Withdrawal Force(g/f) | 100~300 |
| Operating Temperature | -40~+85 degreee celsius |
| Compliant with | UL and RoHS |
| Compliant with | respective IEC standard |
| Compliant with | bellcore GR-326 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
