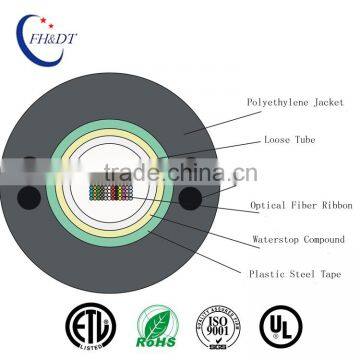

Made in China Optical Fiber Cable GYDXTW

Type of fiber

B1.1

B4

Wavelength(nm)

1310

1550

1550

Attenuation coefficient(max)(dB/km)

0.36

0.22

0.22

PMD

M

20

20

Q

0.01%

0.01%

PMD_Q(max)

0.5ps/km^1/2

0.5ps/km^1/2

Zero-dispersion Wavelength(nm)

1300~1324

——

Zero-dispersion Slope (max) ps/(nm²·km)

0.093

——

Absolute value of Chromatic Dispersion ps/(nm·km)

1288~1339nm

3.5

——

1271~1360nm

5.3

——

1550nm

18.0

——

1530~1565nm

——

0.1~10.0

Dmax-Dmin 1530~1565nm

——

5.0

cut-off wavelength lcc(nm)

≤1260

≤1480

Note: If specification at 1600nm is required, Please make it out in the ordering contract.

Fibre

Count

Steel Wire mm

Loose Tube

Size

(mm)

Sheath

Thickness

mm

Cable

Diameter

(mm)

Cable Weight

(kg)

Strength

Long/Short Term

(N)

Crush

Resistance

(N/100mm)

12~16

1.6

2.7/3.5

3.1

11.5

144

600/1500

300/1000

24

1.6

3.5/4.5

3.1

12.5

165

600/1500

300/1000

36

1.6

4.2/5.2

3.1

13.1

181

600/1500

300/1000

48

1.6

5.8/7.0

3.1

15.0

224

600/1500

300/1000

60~72

1.6

6.2/7.4

3.1

15.4

235

600/1500

300/1000

84~108

1.6

7.3/8.5

3.1

16.5

266

600/1500

300/1000

120

1.6

7.7/9.1

3.1

17.1

284

600/1500

300/1000

132~156

1.6

8.5/9.9

3.1

17.9

308

600/1500

300/1000

168~180

1.6

9.1/10.5

3.1

18.5

326

600/1500

300/1000

192

1.6

9.8/11.2

3.1

19.2

348

600/1500

300/1000
