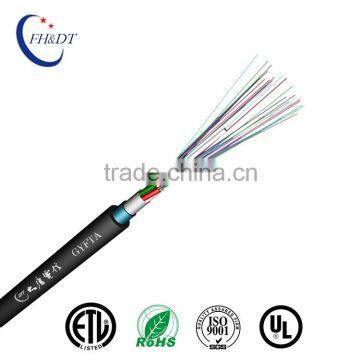

GYFTA non-metallic Aluminium tape armored frp square tube fiber optic cable

Type of fiber

B1.3

B4

Wavelength(nm)

1310

1550

1550

Attenuation coefficient(max)(dB/km)

0.36

0.22

0.22

PMD

M

20

20

Q

0.01%

0.01%

PMD_Q (max)

0.5ps/km^1/2

0.5ps/km^1/2

Zero-dispersion Wavelength(nm)

1300~1324

——

Zero-dispersion Slope (max) ps/(nm²·km)

0.093

——

Absolute value of Chromatic Dispersion ps/(nm·km)

1288~1339nm

3.5

——

1271~1360nm

5.3

——

1550nm

18.0

——

1530~1565nm

——

0.1~10.0

Dmax-Dmin 1530~1565nm

——

5.0

cut-off wavelength lcc(nm)

≤1260

≤1480

Note: If specification at 1600nm is required, Please make it out in the ordering contract.

Fibre

Count

FRP

mm

PE Sheathed

FRP

mm

Loose Tube

Size

mm

Tubes

Fillers

Cable

Diameter

mm

Cable

Weight

kg

Strength

Long/Short Term

N

Crush Resistance

Long/Short Term

N/100mm

4~6

2.3

/

1.4/2.1

1

5

10.6

88

600/1500

300/1000

8~12

2.3

/

1.4/2.1

2

4

10.6

89

600/1500

300/1000

14~18

2.3

/

1.4/2.1

3

3

10.6

90

600/1500

300/1000

20~24

2.3

/

1.4/2.1

4

2

10.6

90

600/1500

300/1000

26~30

2.3

/

1.4/2.1

5

1

10.6

91

600/1500

300/1000

32~36

2.3

/

1.4/2.1

6

0

10.6

92

600/1500

300/1000

38~48

2.8

/

1.8/2.6

4

2

12.1

119

600/1500

300/1000

50~60

2.8

/

1.8/2.6

5

1

12.1

121

600/1500

300/1000

62~72

2.8

/

1.8/2.6

6

0

12.1

122

600/1500

300/1000

74~84

2.8

3.6

1.8/2.6

7

0

13.0

147

600/1500

300/1000

86~96

3.0

4.4

1.8/2.6

8

0

13.8

170

600/1500

300/1000

98~108

3.0

5.3

1.8/2.6

9

0

14.7

197

600/1500

300/1000

110~120

3.0

6.1

1.8/2.6

10

0

15.5

224

600/1500

300/1000

122~132

3.0

6.9

1.8/2.6

11

0

16.3

253

600/1500

300/1000

134~144

3.0

7.8

1.8/2.6

12

0

17.2

288

600/1500

300/1000
