Product Details
| Place of Origin | Sichuan, China | Brand Name | FHDT | |
| Model Number | GYFTY53 |
Product Description

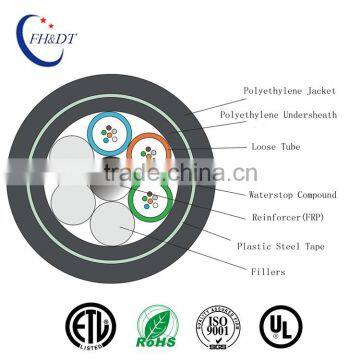

GYFTY53—Non-metal central strength member, stranded loose tube, black PE sheath indoor, corrugated steel tape armoring, black PE sheath outdoor cable.
Applications
This product can be used as outdoor transmission lines in core network (for example, long haul and relay lines between local telecommunication centers). It can also be used as outdoor distribution lines or feeder in access network.
Application Circumstances
Recommended: Direct buried
Alternative: Aerial, Duct
Optical characteristic of optical fiber cable
Type of fiber | B1.3 | B4 | |||
Wavelength(nm) | 1310 | 1550 | 1550 | ||
Attenuation coefficient(max)(dB/km) | 0.35 | 0.21 | 0.22 | ||
PMD | M | 20 | 20 | ||
Q | 0.01% | 0.01% | |||
PMDQ(max) | 0.5ps/km1/2 | 0.5ps/km1/2 | |||
Zero-dispersion Wavelength(nm) | 1300~1324 | —— | |||
Zero-dispersion Slope (max) ps/(nm2·km) | 0.093 | —— | |||
Absolute value of Chromatic Dispersion ps/(nm·km) | 1288~1339nm | 3.5 | —— | ||
1271~1360nm | 5.3 | —— | |||
1550nm | 18.0 | —— | |||
1530~1565nm | —— | 0.1~10.0 | |||
Dmax-Dmin 1530~1565nm | —— | 5.0 | |||
cut-off wavelength lcc(nm) | ≤1260 | ≤1480 | |||
Note: If specification at 1600nm is required, Please make it out in the ordering contract. | |||||
Structure and Mechanical Characteristics of Cable
Fibre Count | FRP mm | PE Sheathed FRP mm | Loose Tube Size mm | Tubes | Fillers | Cable Diameter mm | Cable Weight kg | Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm |
2~6 | 3.0 | 0 | 1.5/2.2 | 1 | 6 | 14.4 | 205 | 1000/3000 | 1000/3000 |
8~12 | 3.0 | 0 | 1.5/2.2 | 2 | 5 | 14.4 | 205 | 1000/3000 | 1000/3000 |
14~18 | 3.0 | 0 | 1.5/2.2 | 3 | 4 | 14.4 | 205 | 1000/3000 | 1000/3000 |
20~24 | 3.0 | 0 | 1.5/2.2 | 4 | 3 | 14.4 | 205 | 1000/3000 | 1000/3000 |
26~30 | 3.0 | 0 | 1.5/2.2 | 5 | 2 | 14.4 | 205 | 1000/3000 | 1000/3000 |
32~36 | 3.0 | 0 | 1.5/2.2 | 6 | 1 | 14.4 | 205 | 1000/3000 | 1000/3000 |
38~42 | 3.0 | 0 | 1.5/2.2 | 7 | 0 | 14.4 | 205 | 1000/3000 | 1000/3000 |
44~48 | 3.2 | 0 | 1.7/2.4 | 4 | 3 | 15.0 | 220 | 1000/3000 | 1000/3000 |
50~60 | 3.2 | 0 | 1.7/2.4 | 5 | 2 | 15.0 | 220 | 1000/3000 | 1000/3000 |
62~72 | 3.2 | 0 | 1.7/2.4 | 6 | 1 | 15.0 | 220 | 1000/3000 | 1000/3000 |
74~84 | 3.2 | 0 | 1.7/2.4 | 7 | 0 | 15.0 | 220 | 1000/3000 | 1000/3000 |
Temperature Characteristics
Temperature range :-40℃~+70℃
Additional Attenuation≤0.05dB/km
Cable Delivery Length
The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0~+20m. If special requests are made in the contract, the supplied cable length should conform to it.
Allowable bending radius
12.5 D @ static bending
25 D @ dynamic bending
